Left Engine Compartment Wire Harness
Left Engine Compartment Wire Harness

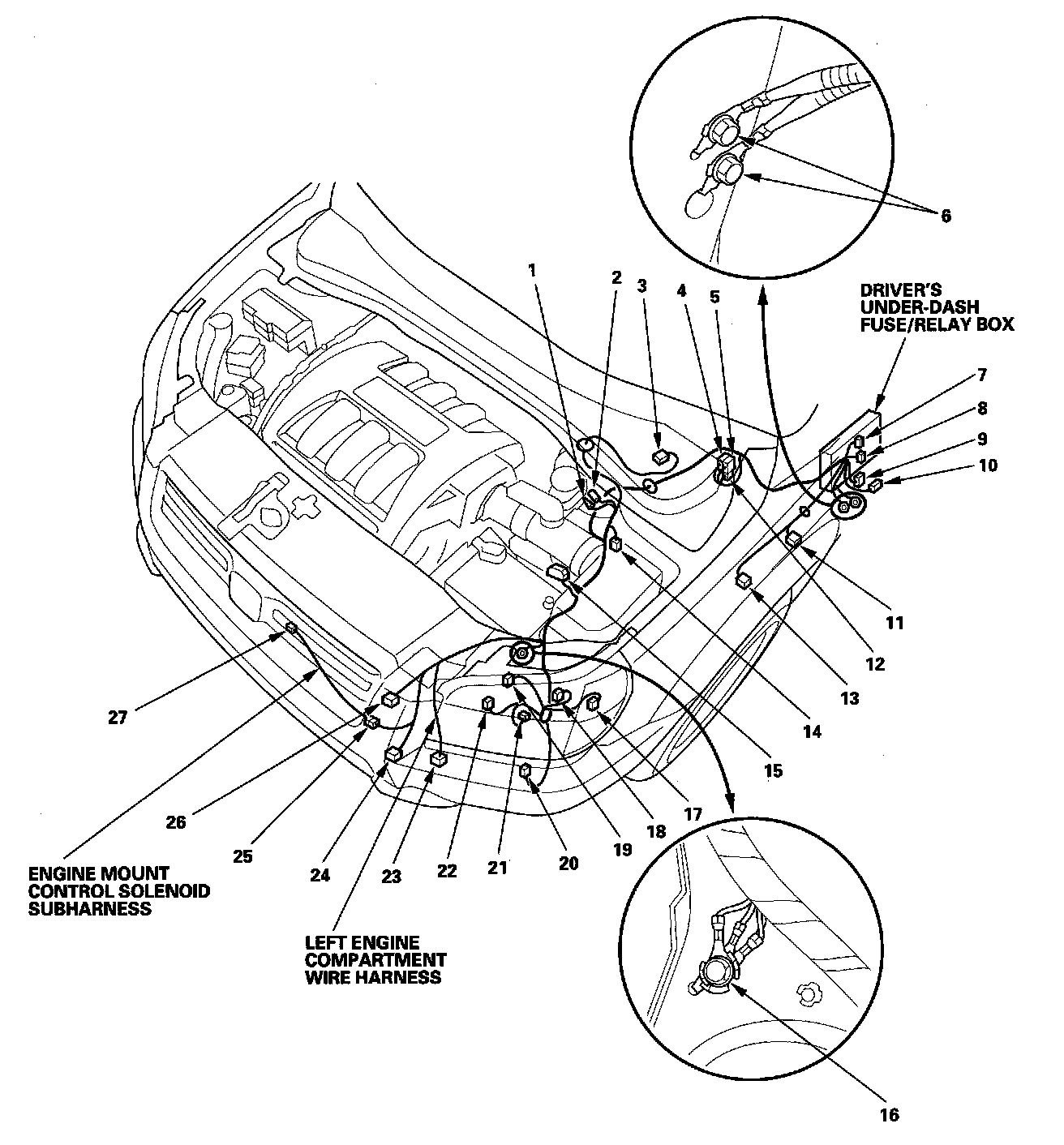

Harness Location View:

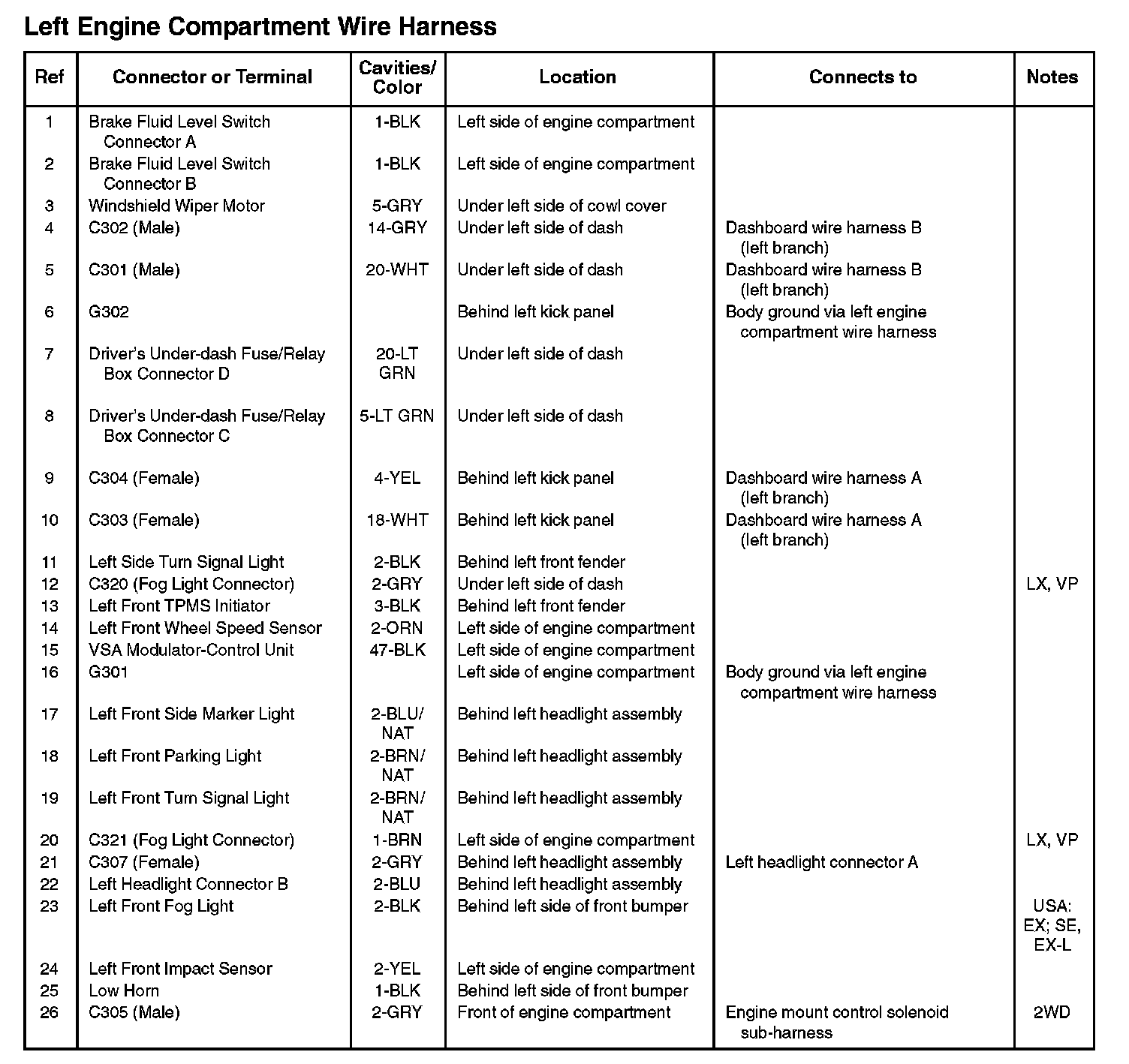

Left Engine Compartment Wire Harness:

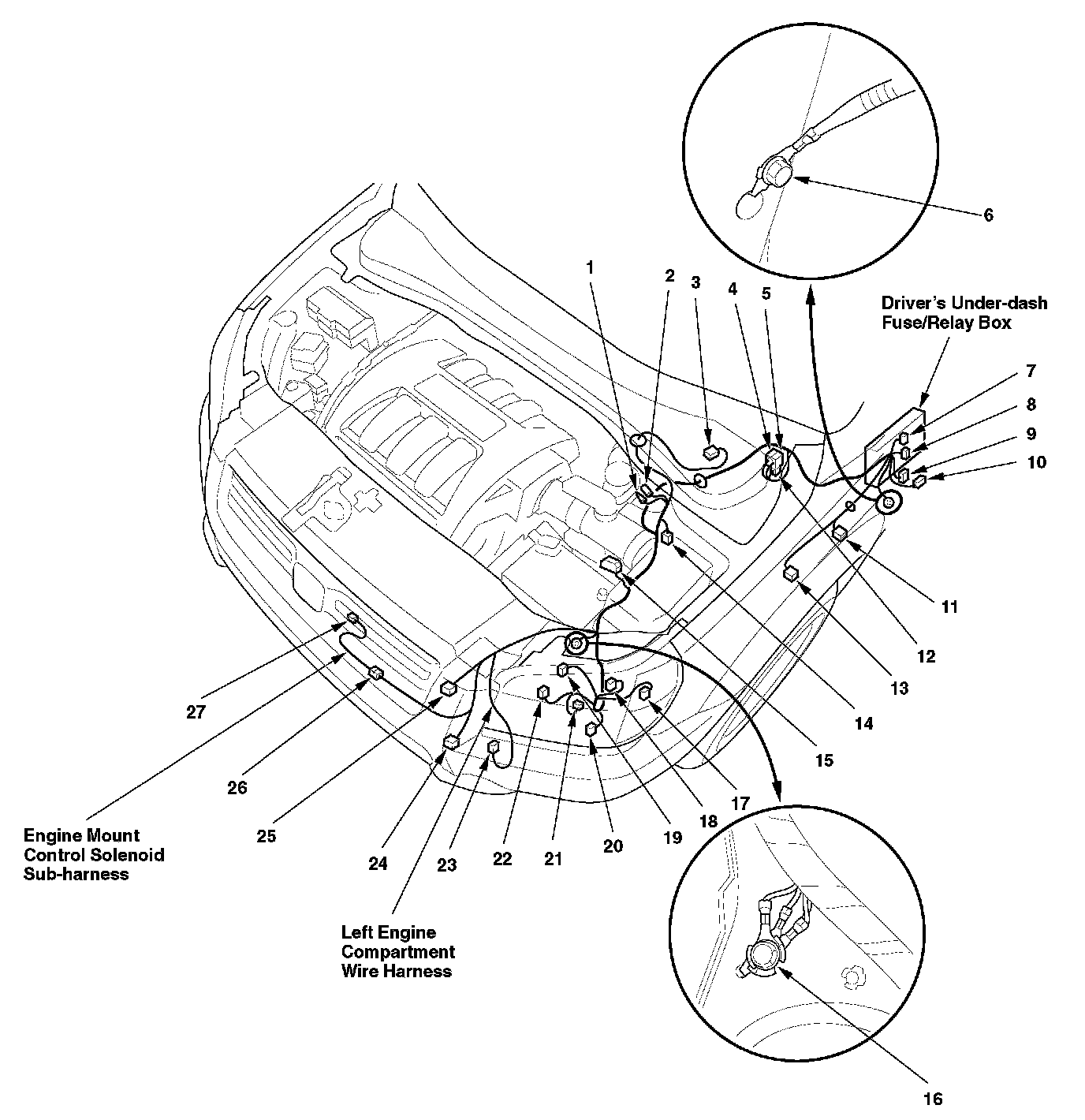

Harness Location View:

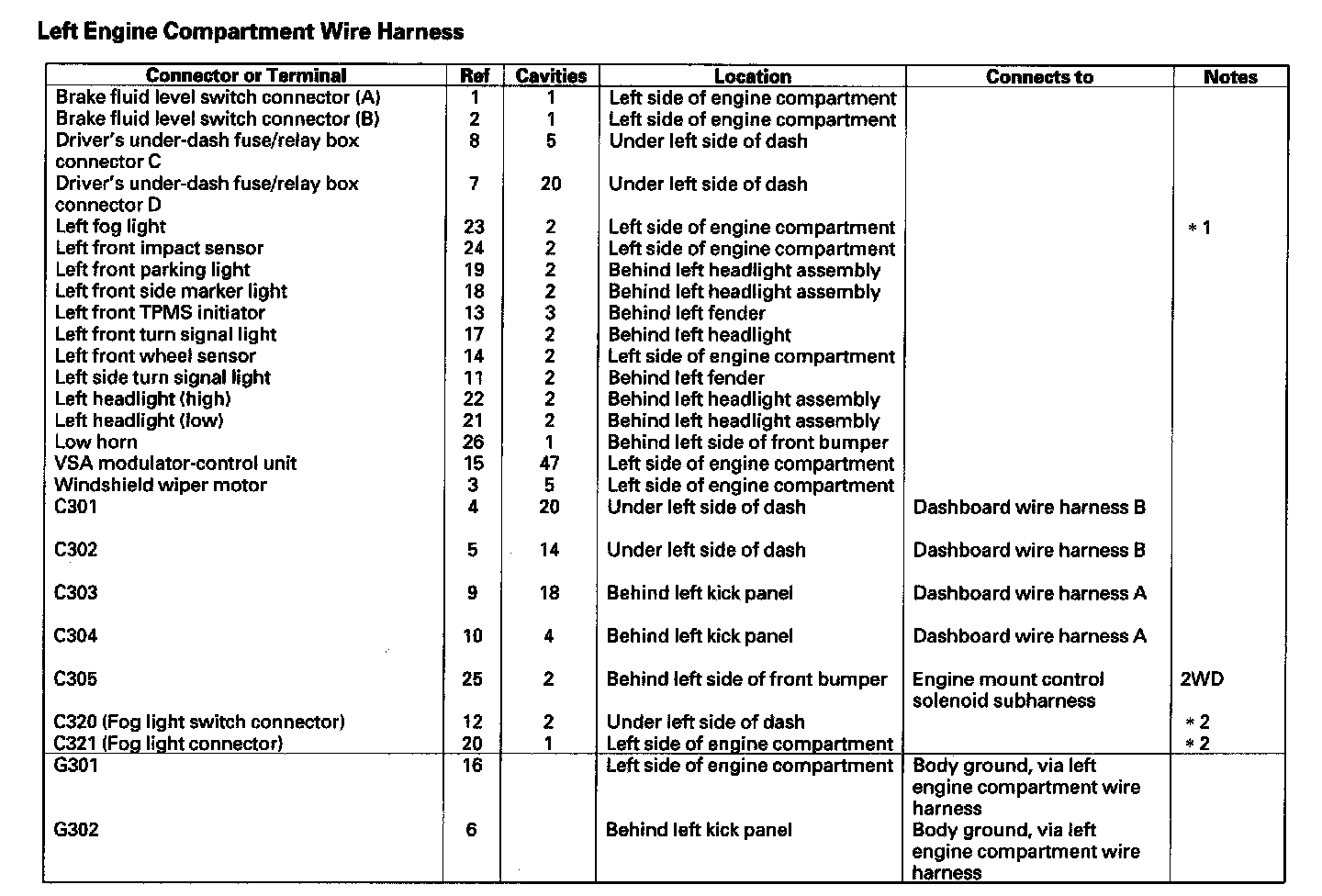

Left Engine Compartment Wire Harness:
