Home >> Honda >> 2008 >> Pilot 4WD V6-3.5L >> Repair and Diagnosis >> Maintenance >> Wheels and Tires >> Wheel Hub >> Locations

Wheel Hub: Locations

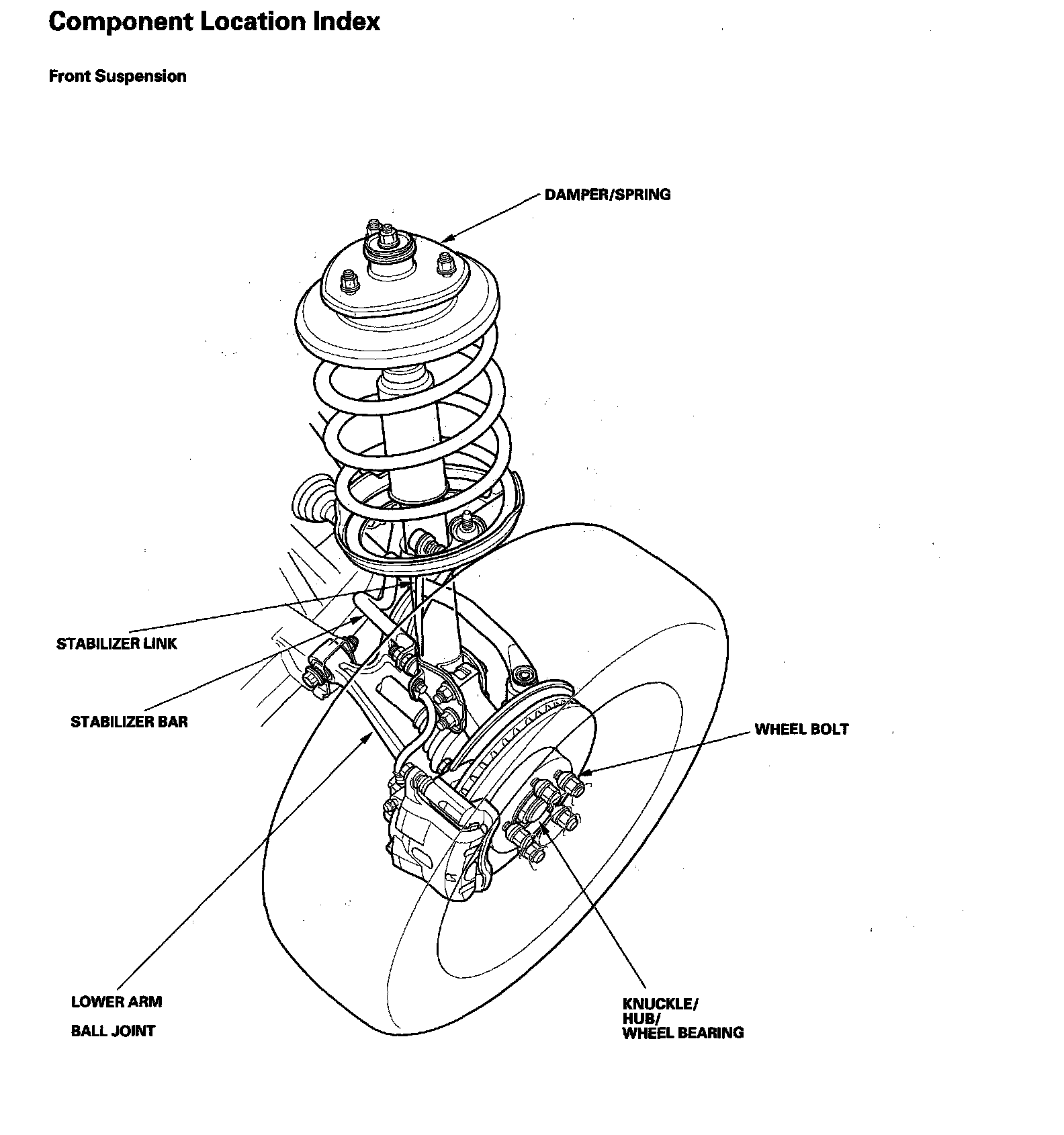

Front Suspension Component Location Index:

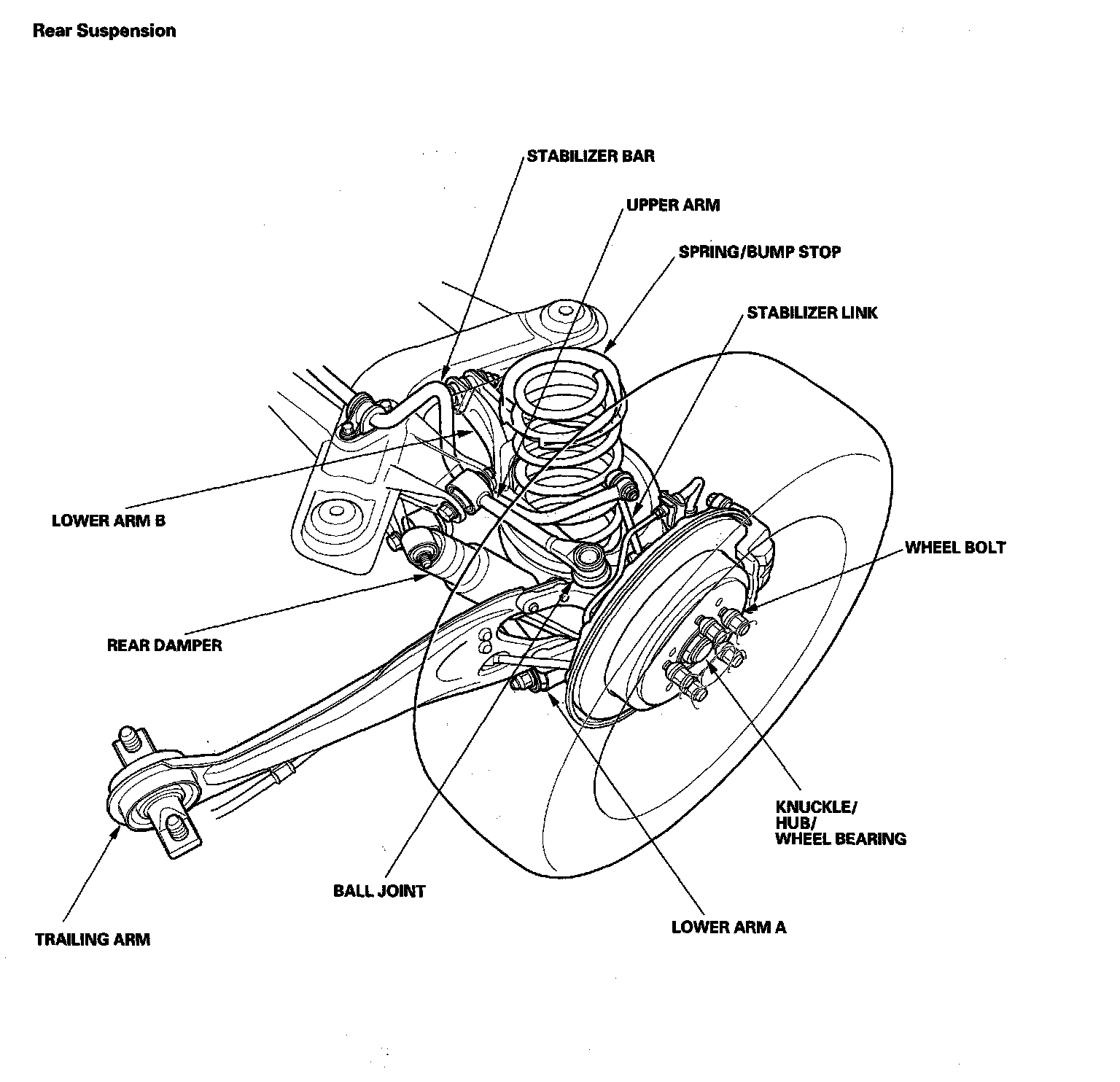

Rear Suspension Component Location Index:
