Fuel Delivery and Air Induction: Locations

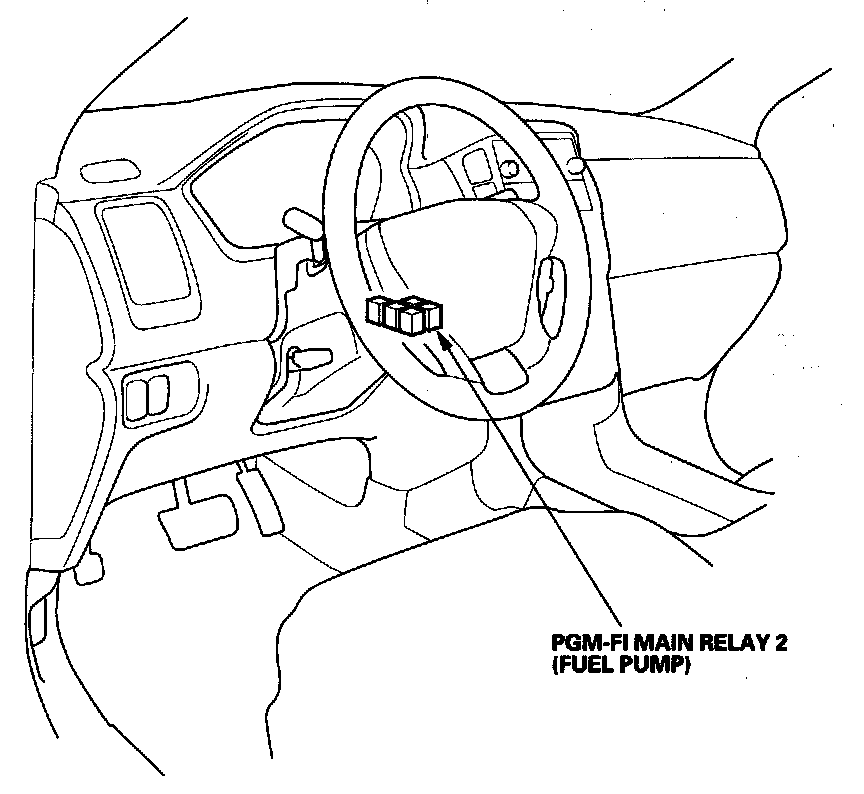

Fuel Supply System Component Location Index:

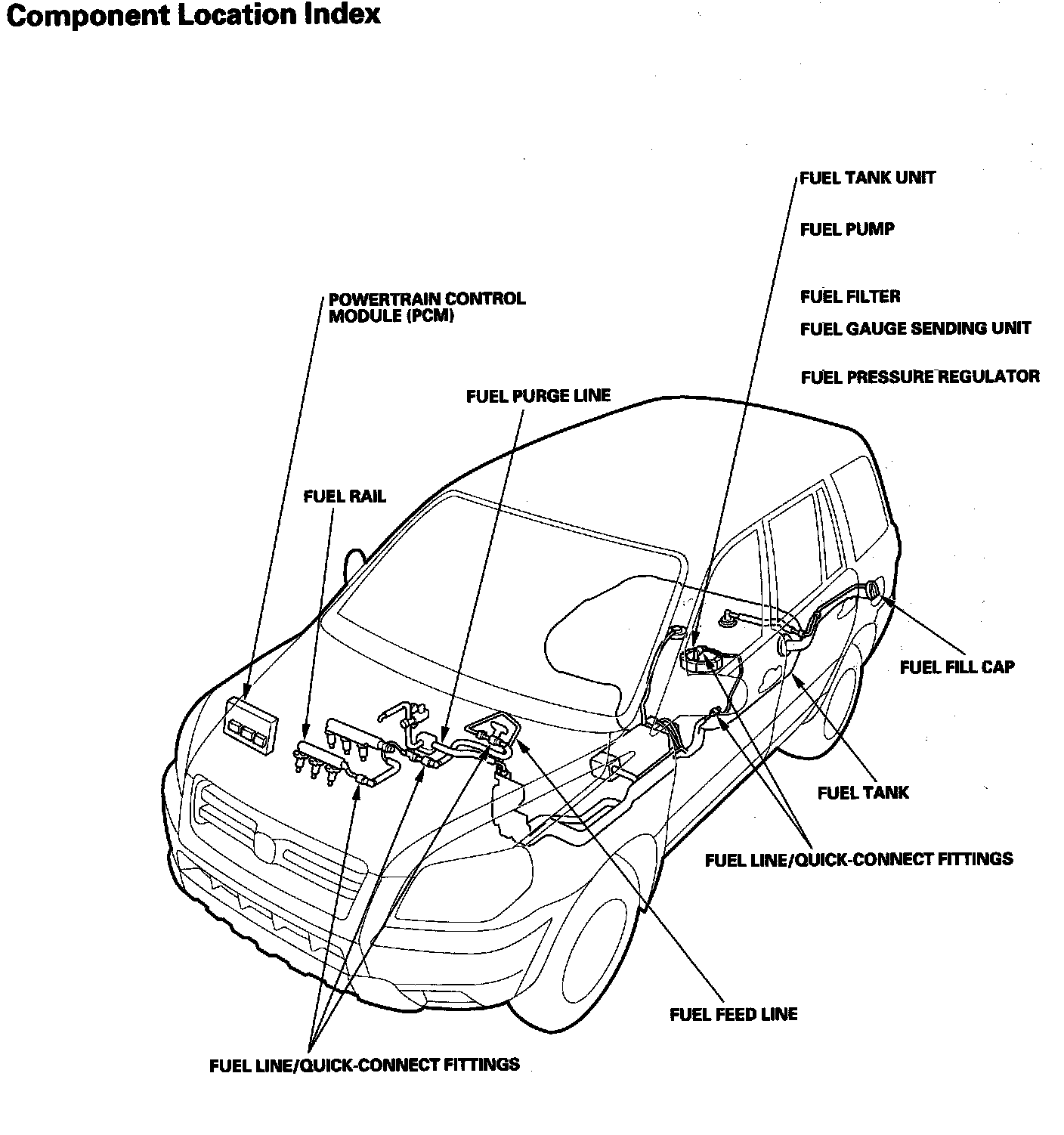

Fuel Supply System Component Location Index:

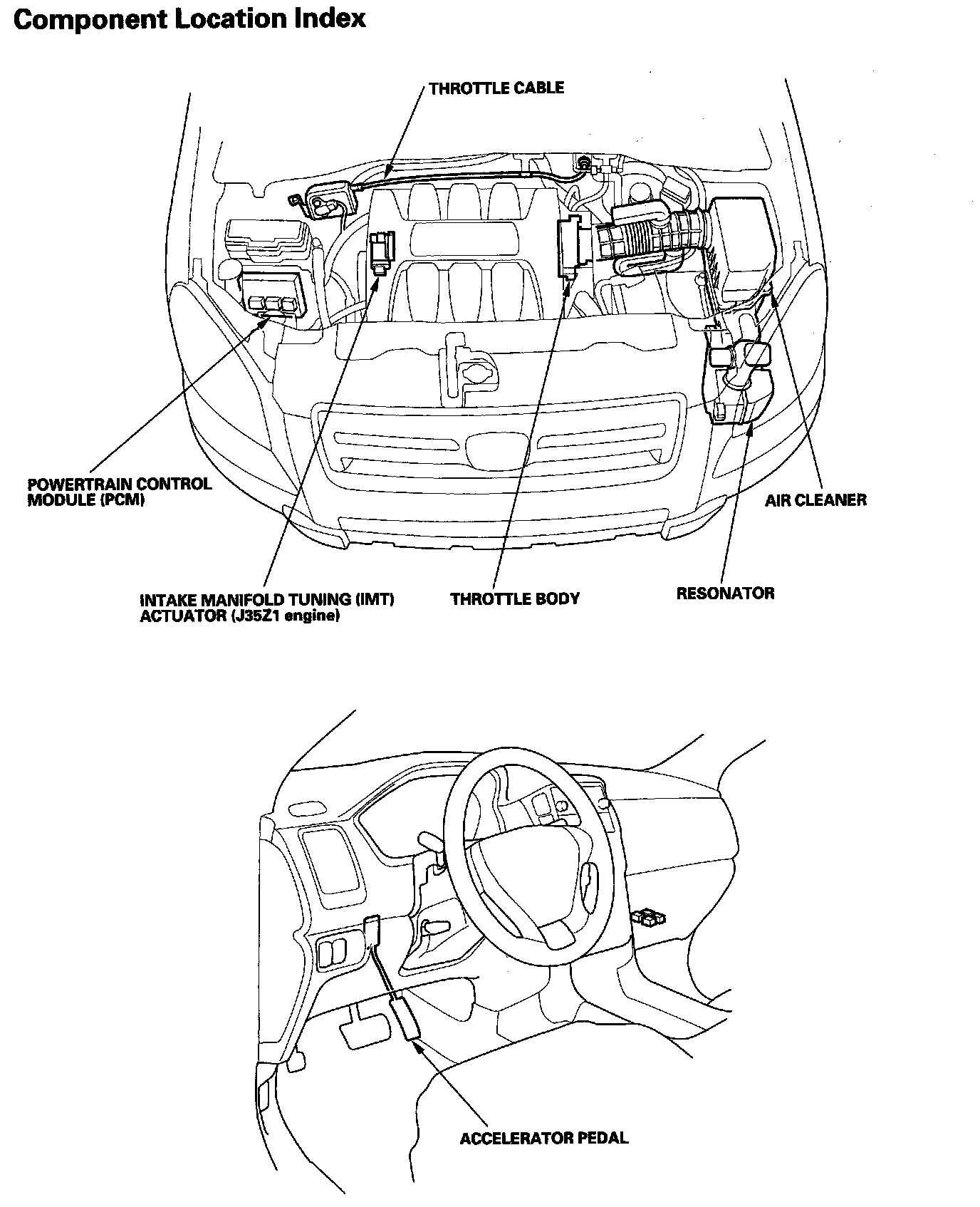

Intake Air System Component Location Index:
