Pilot 4WD V6-3.5L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Circuit Diagrams
Circuit Diagrams

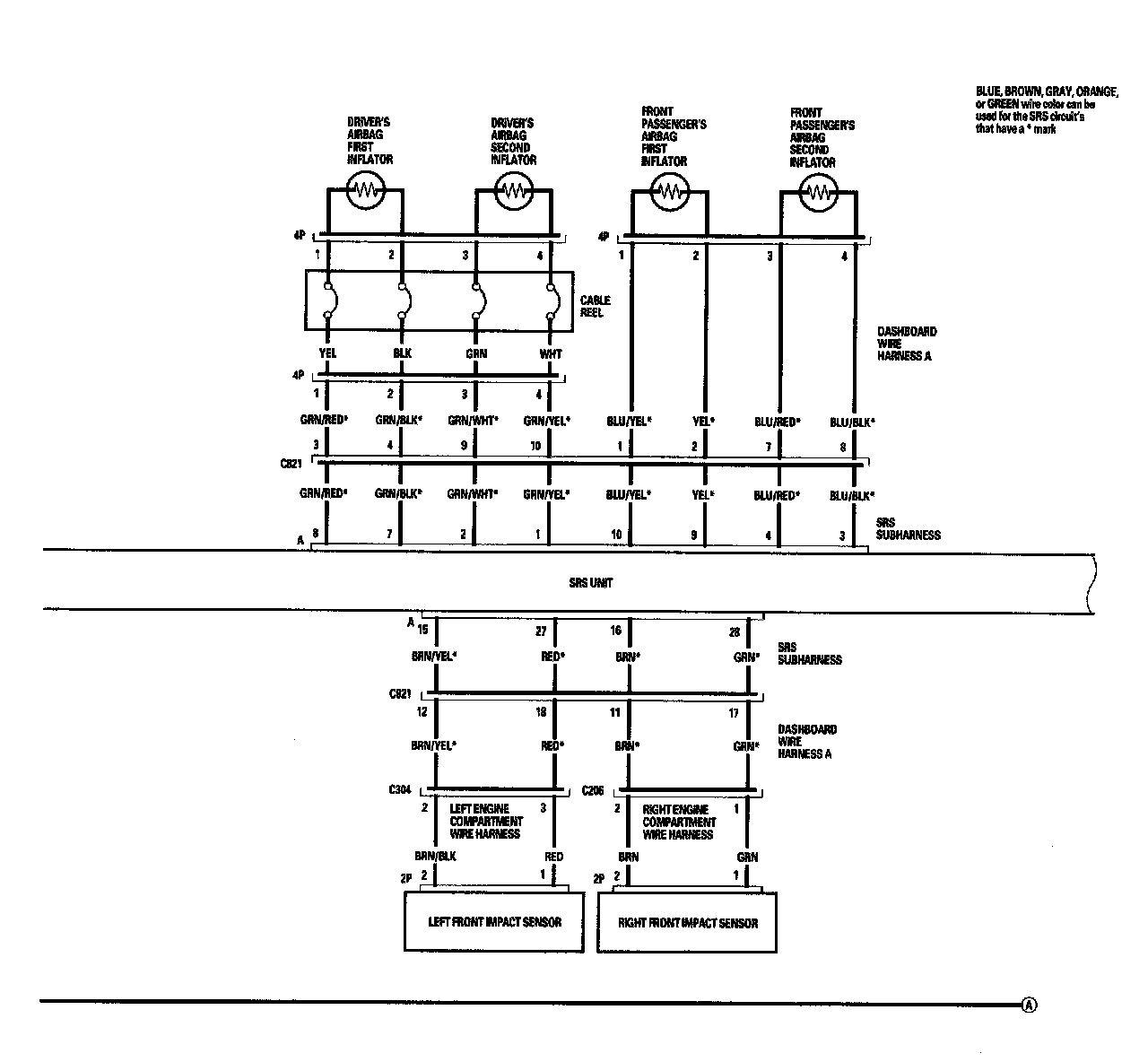

SRS Circuit Diagram (Part 1):

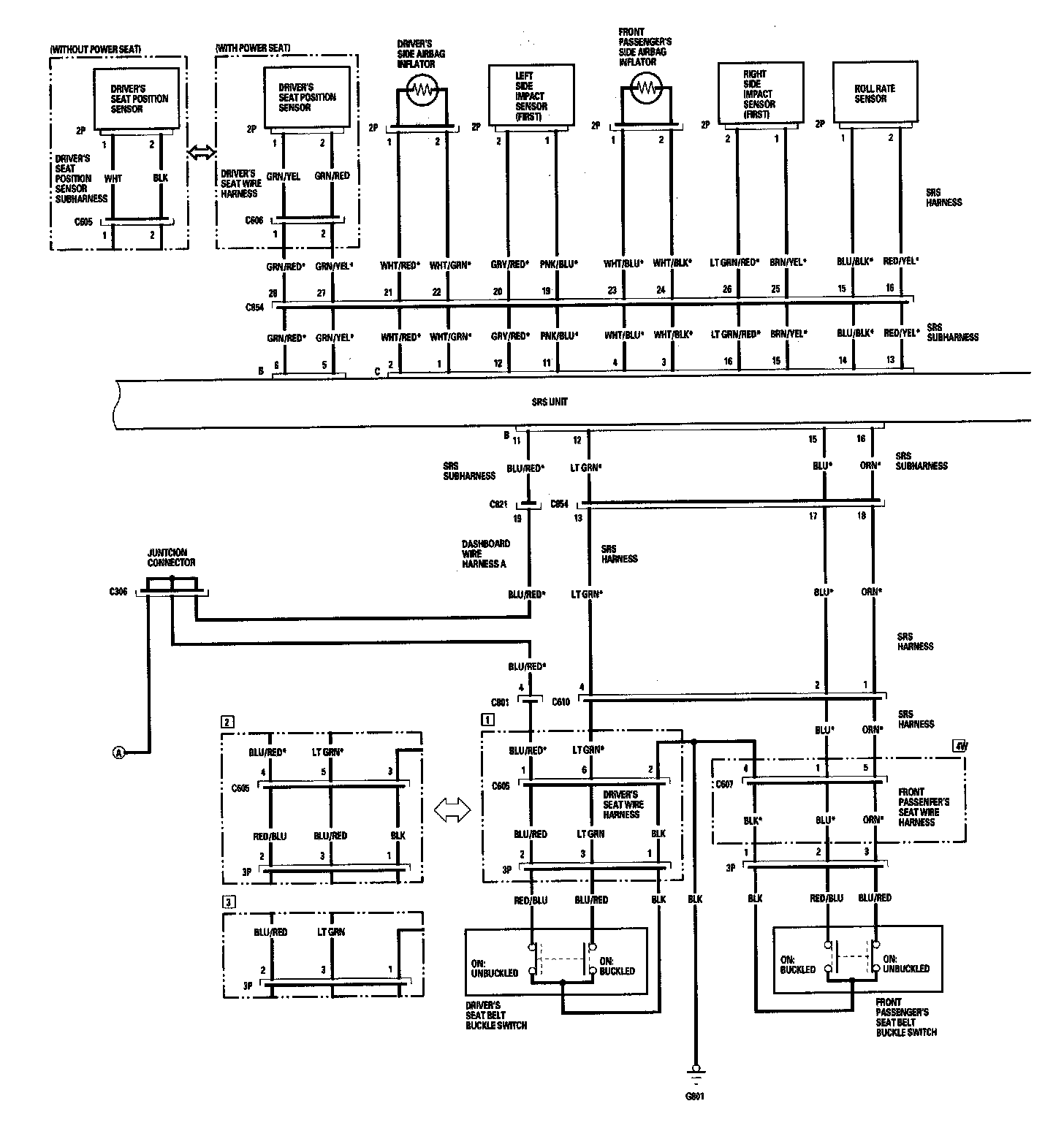

SRS Circuit Diagram (Part 2):

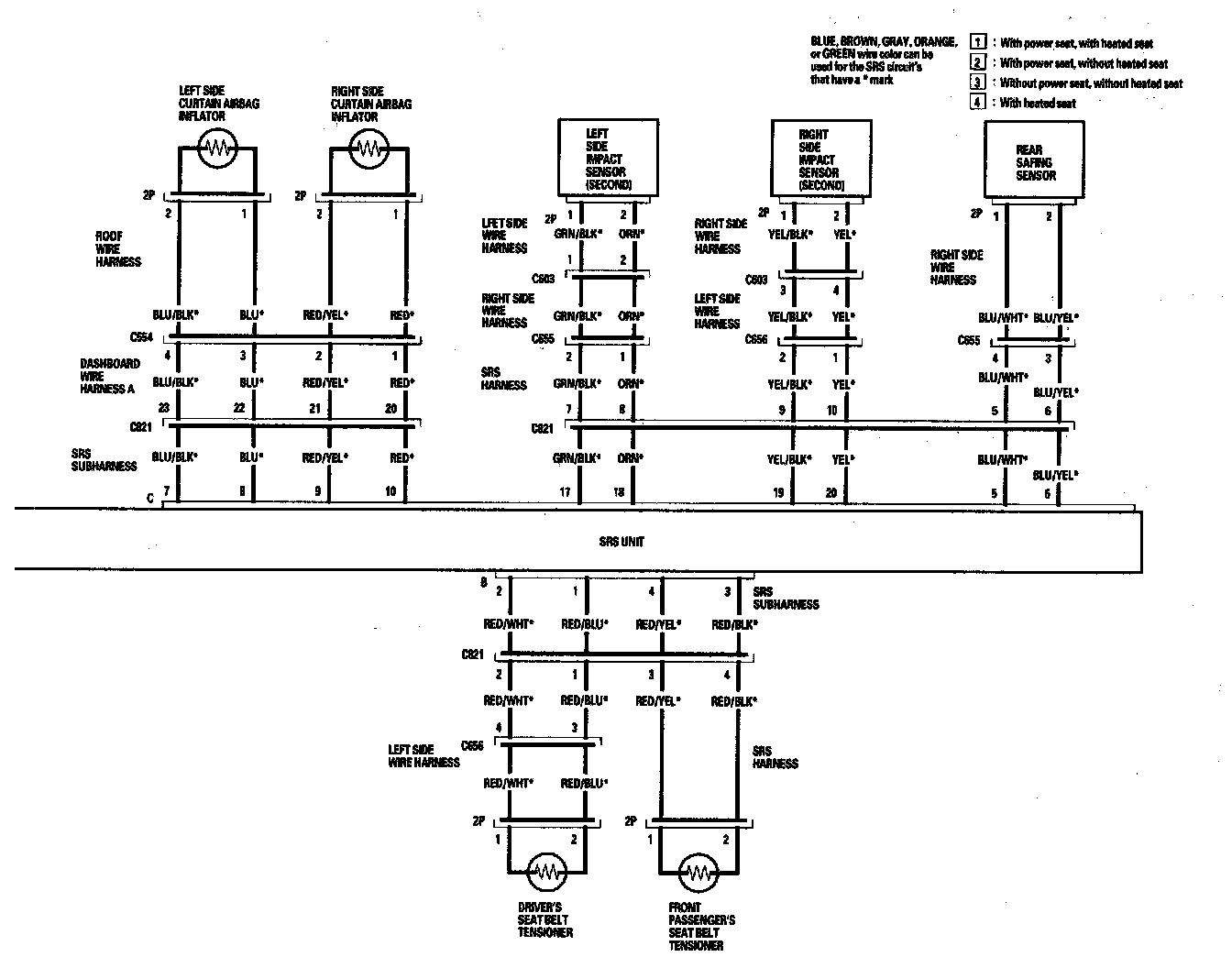

SRS Circuit Diagram (Part 3):
SRS Circuit Diagram (Part 4):
