Wipers/Washers Circuit Diagram
Wipers/Washers Circuit Diagram

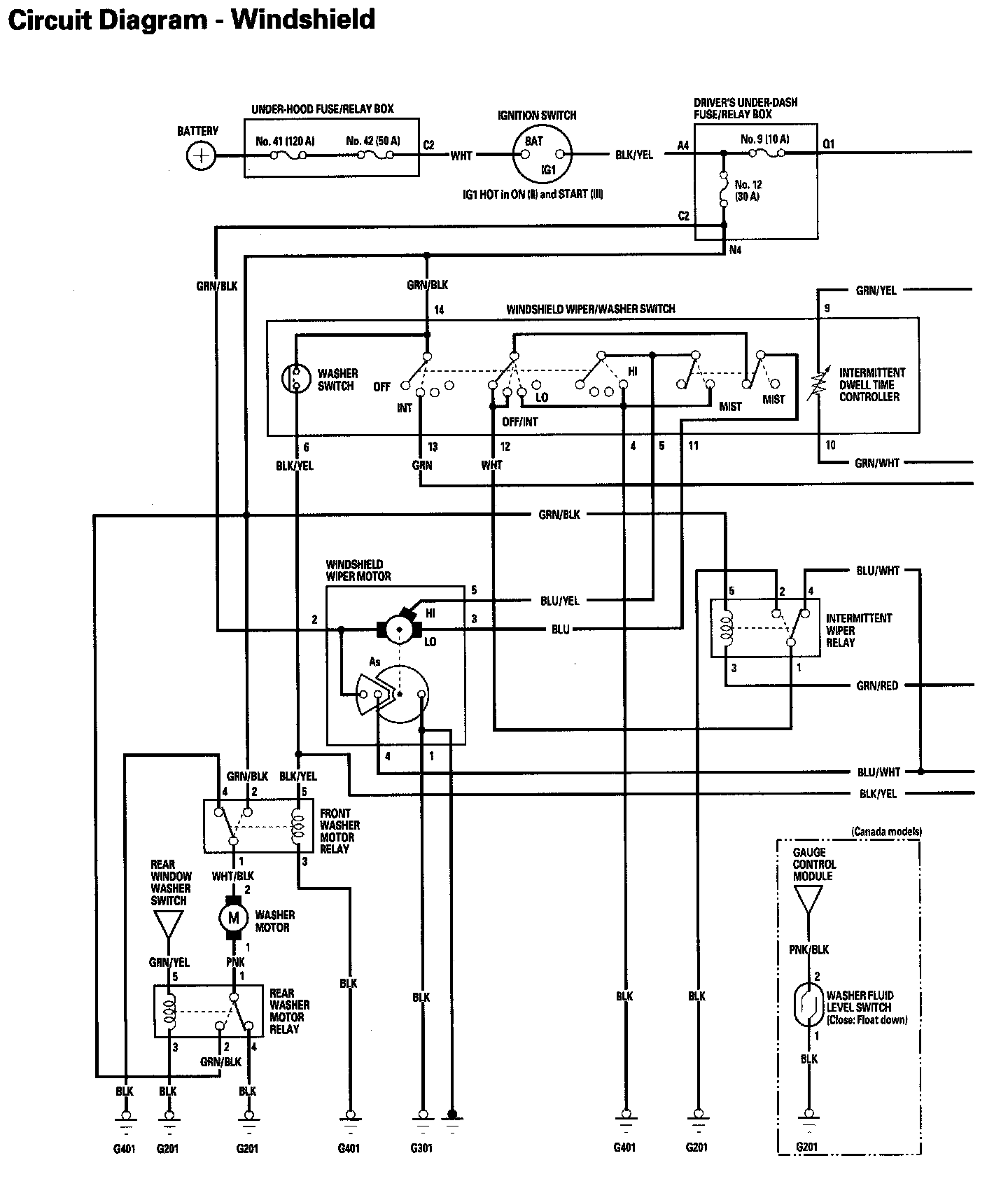

Wipers/Washers Circuit Diagram (Part 1):

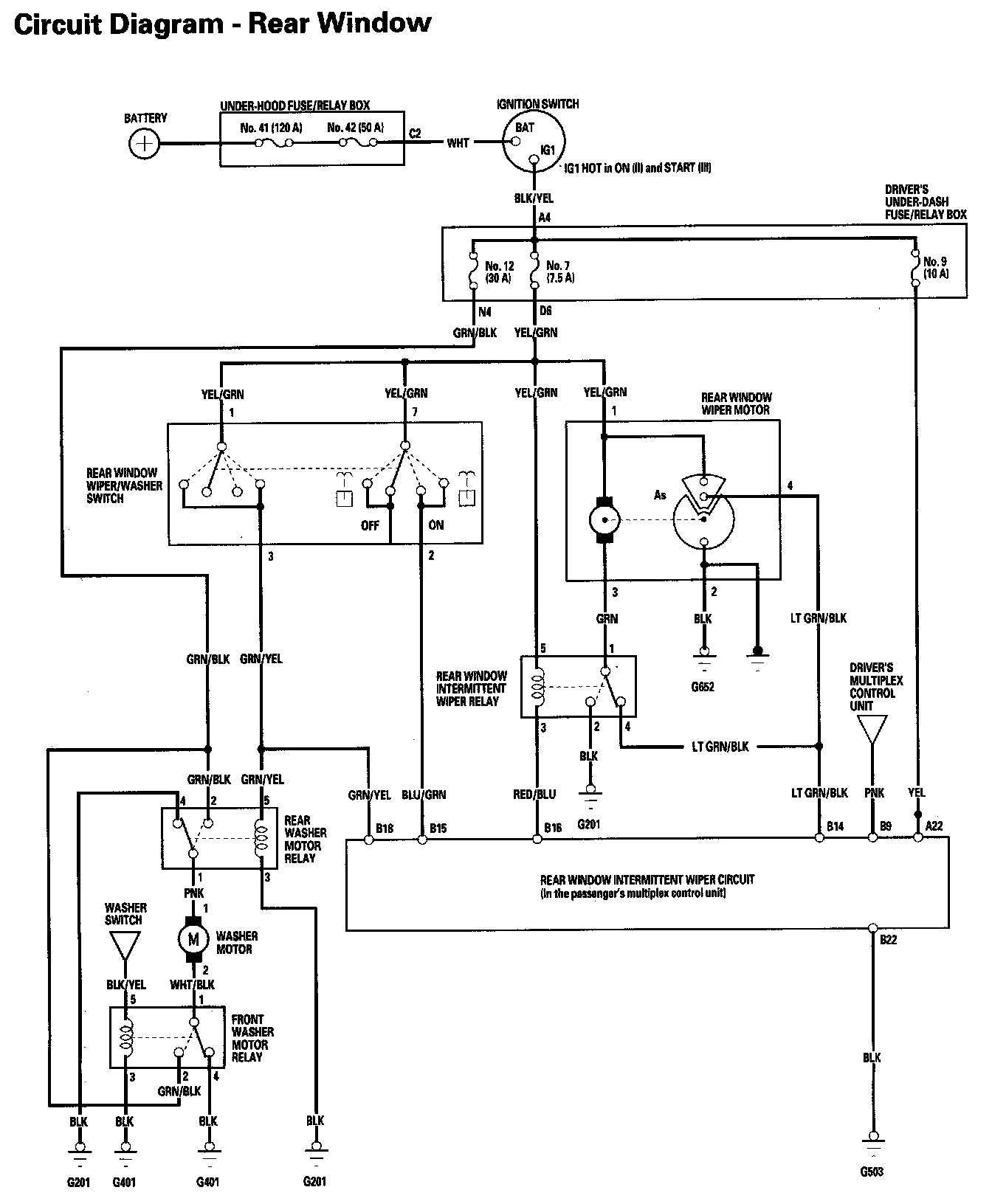

Wipers/Washers Circuit Diagram (Part 2):
Wipers/Washers Circuit Diagram (Part 3):
