Honda
>>
2010
>>
Fit L4-1.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

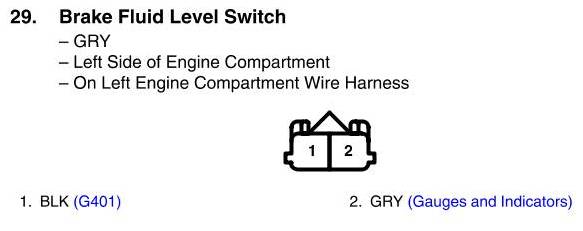

Brake Fluid Level Sensor/Switch
Brake Fluid Level Sensor/Switch
