Home >> Hummer >> 2004 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module >> Front Passenger Door Module (FPDM) - C1

Front Passenger Door Module (FPDM) - C1

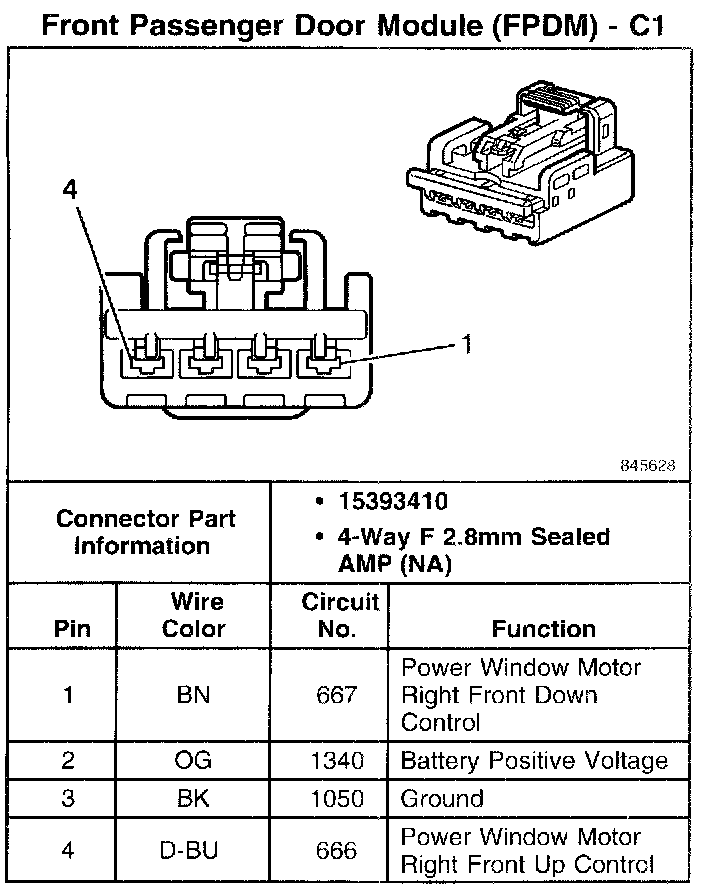

Front Passenger Door Module (FPDM) - C1:

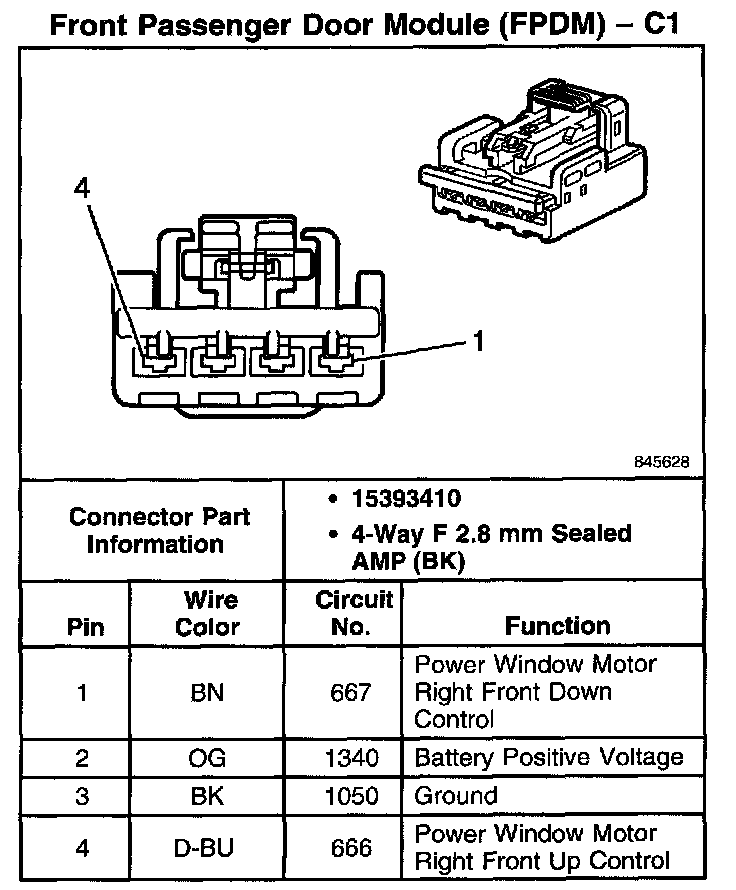

Front Passenger Door Module(FPDM)-C1:
