Hummer
>>
2009
>>
H2 V8-6.2L
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>

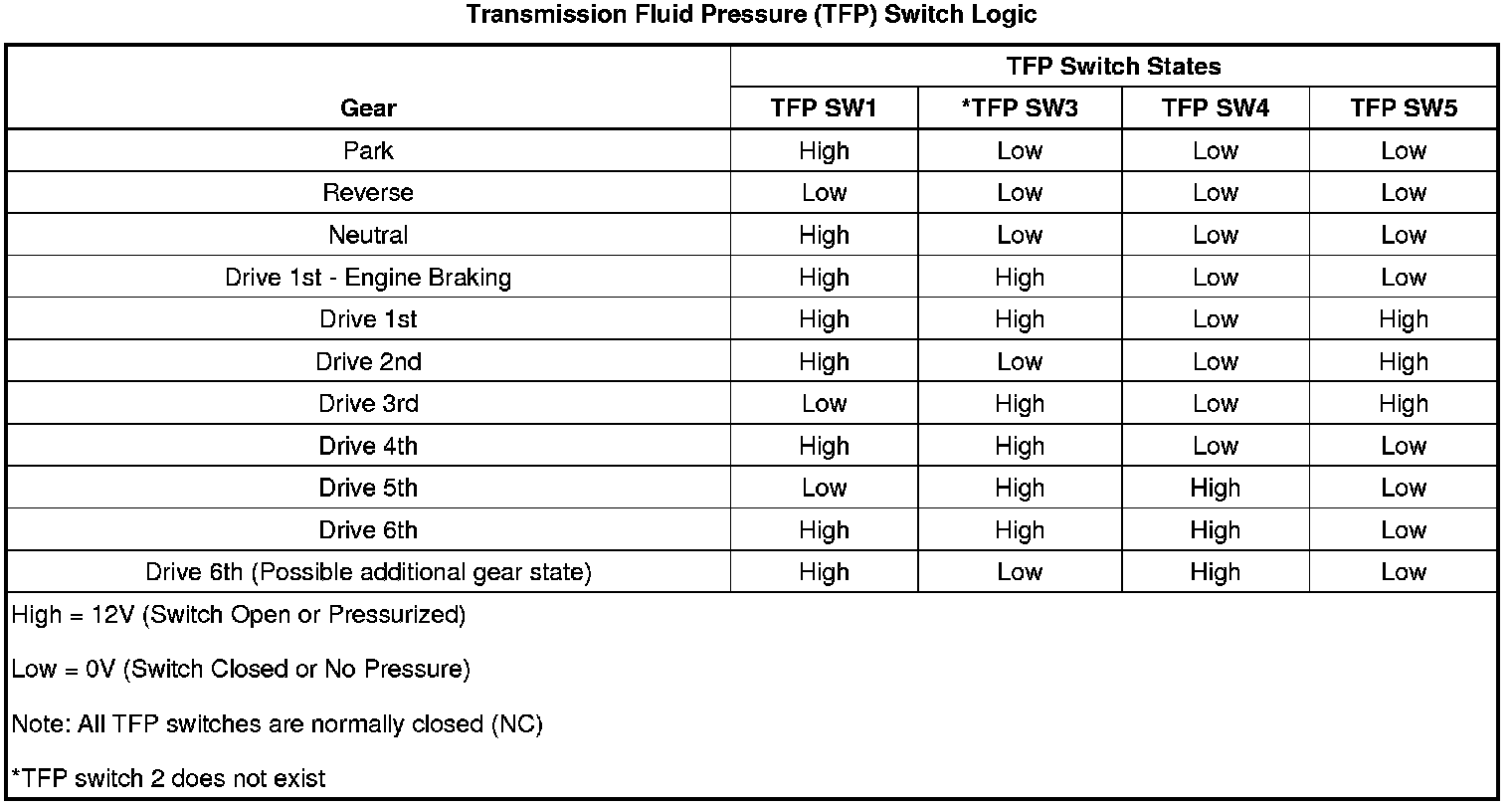

Transmission Fluid Pressure Switch Logic
Transmission Fluid Pressure Switch Logic
Transmission Fluid Pressure Switch Logic
