Home >> Hyundai >> 2011 >> Sonata L4-2.4L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Control Module

Steering Control Module

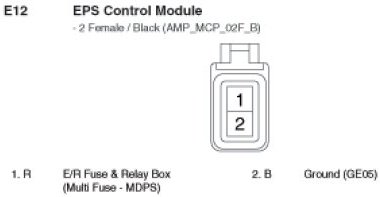

E12 EPS Control Module:

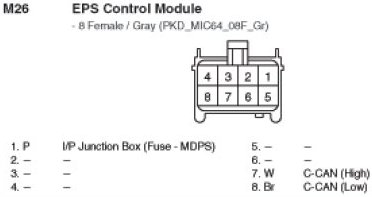

M26 EPS Control Module:
