Power Window Switch
>>
Power Window Main Switch (W/O Passenger Safety)
Power Window Main Switch (W/O Passenger Safety)

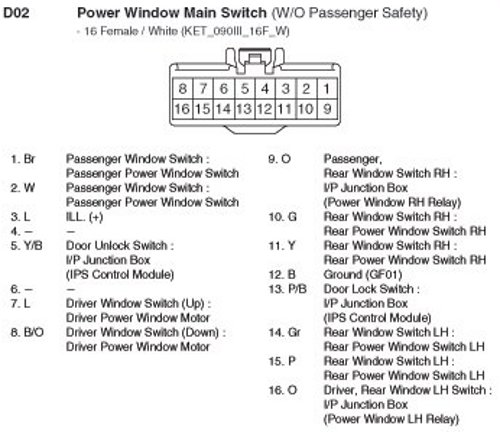

D02 Power Window Main Switch (W/O Passenger Safety):
