Keyless Entry Module

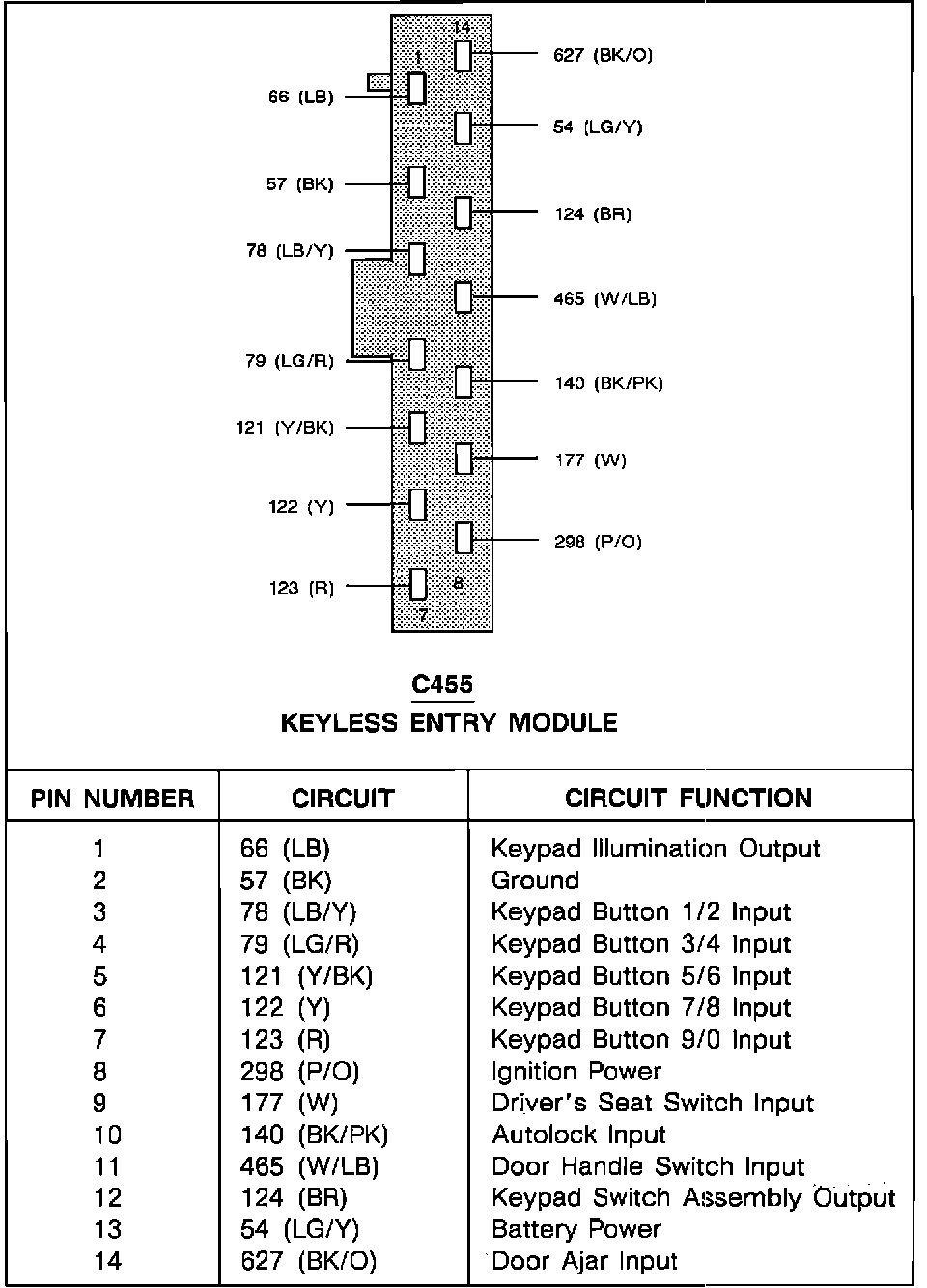

Connector Faces/Pinout Charts:

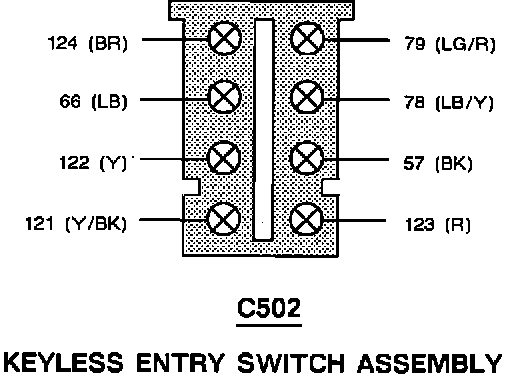

Connector Faces/Pinout Charts:

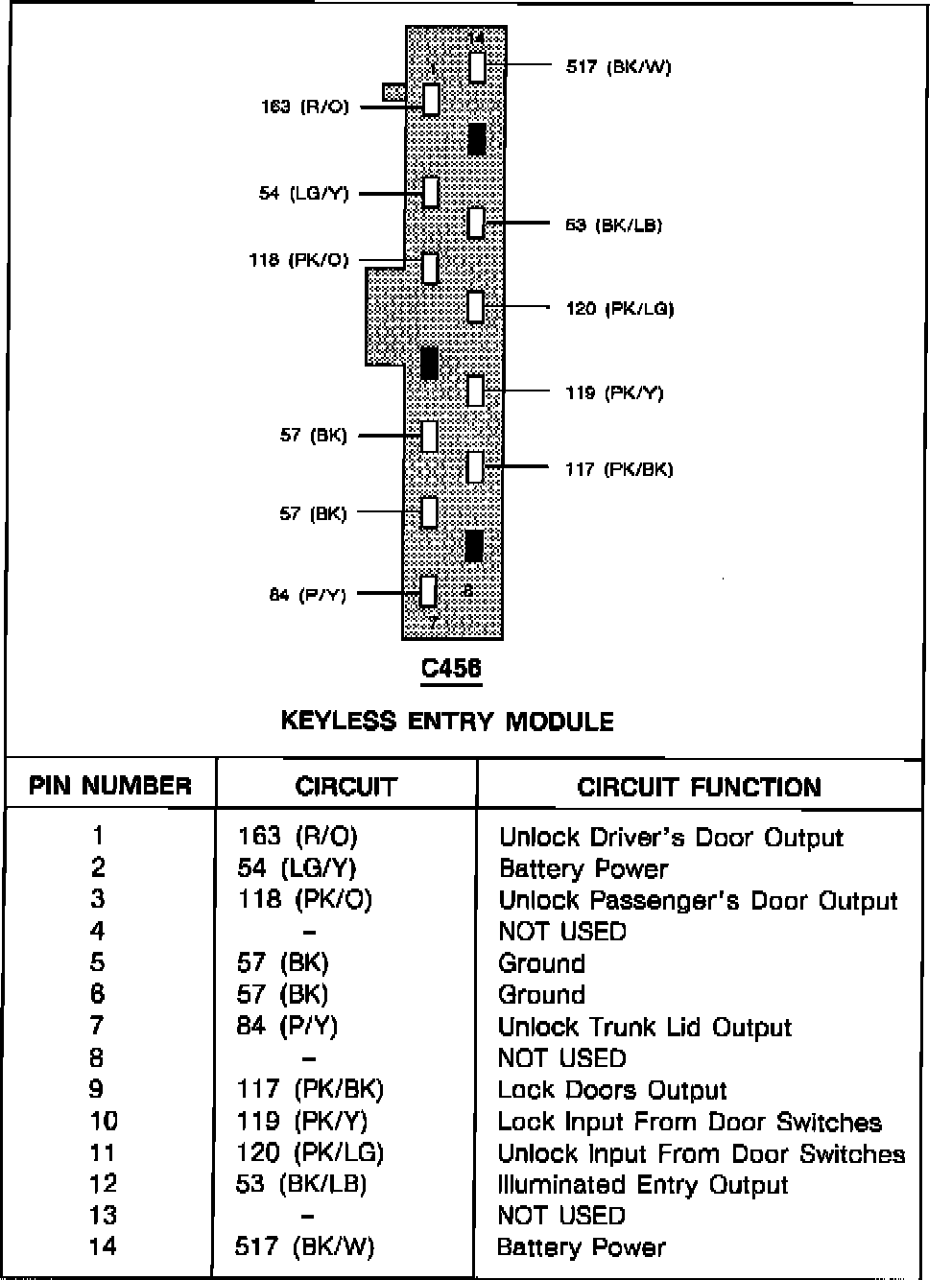

Connector Faces/Pinout Charts:
