Home >> Lincoln >> 2002 >> Town Car V8-4.6L VIN W >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC >> Electronic Automatic Temperature Control Module

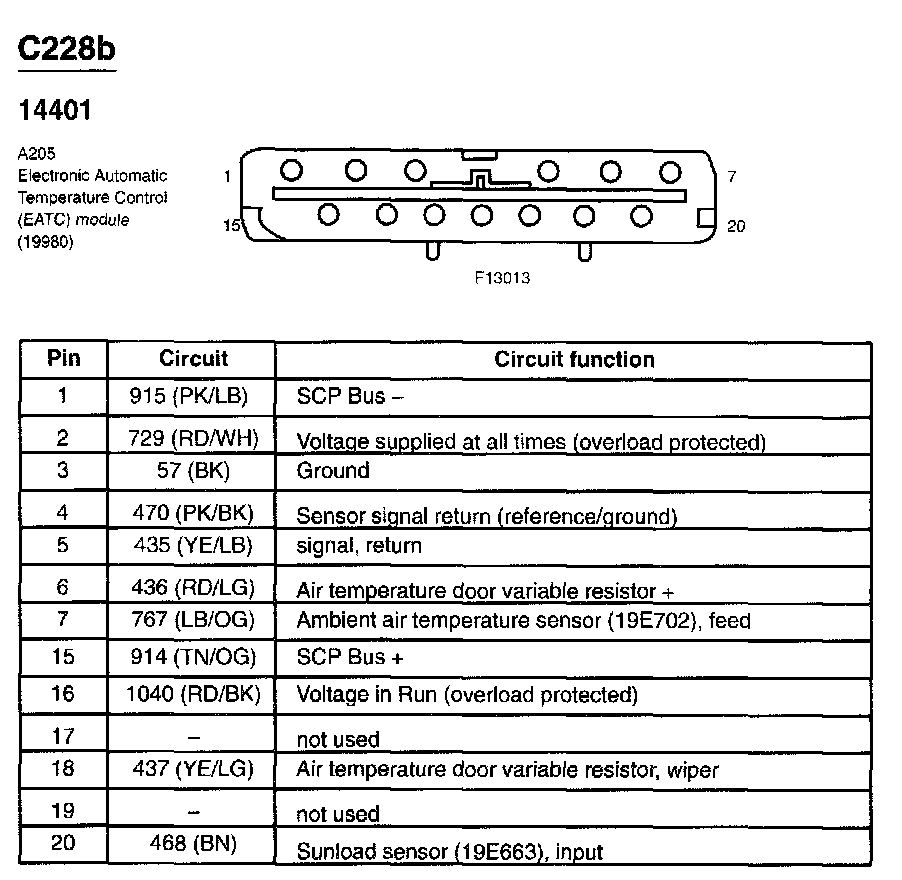

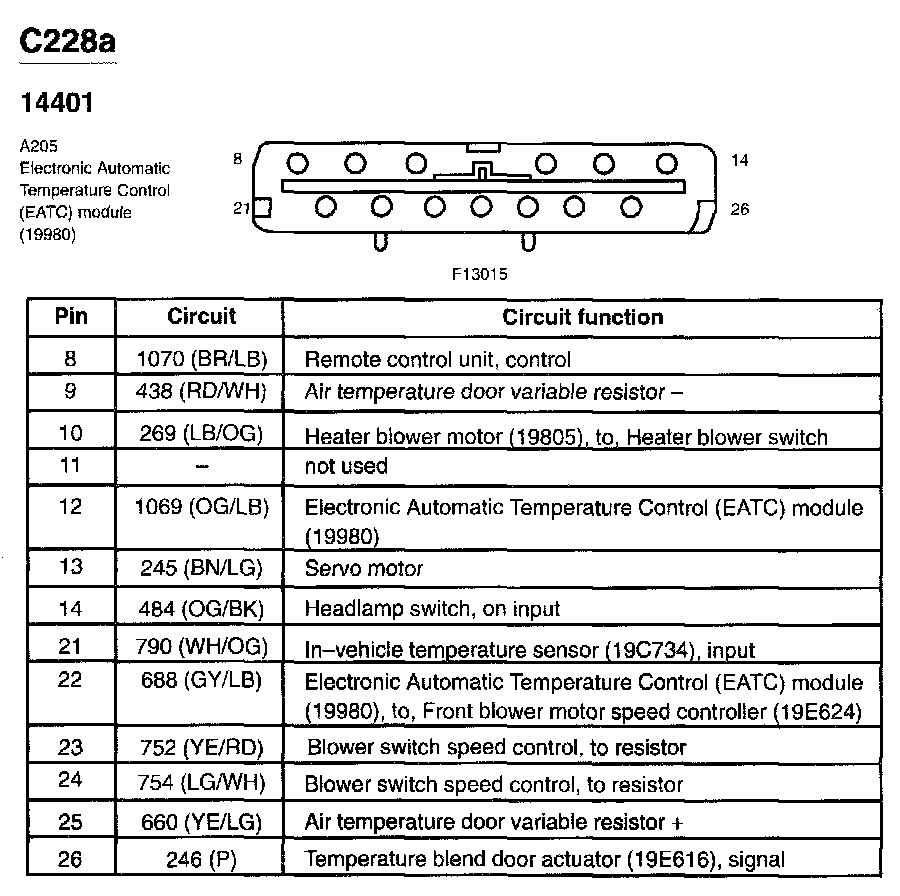

Electronic Automatic Temperature Control Module
