Deactivation Indicator Does Not Dim

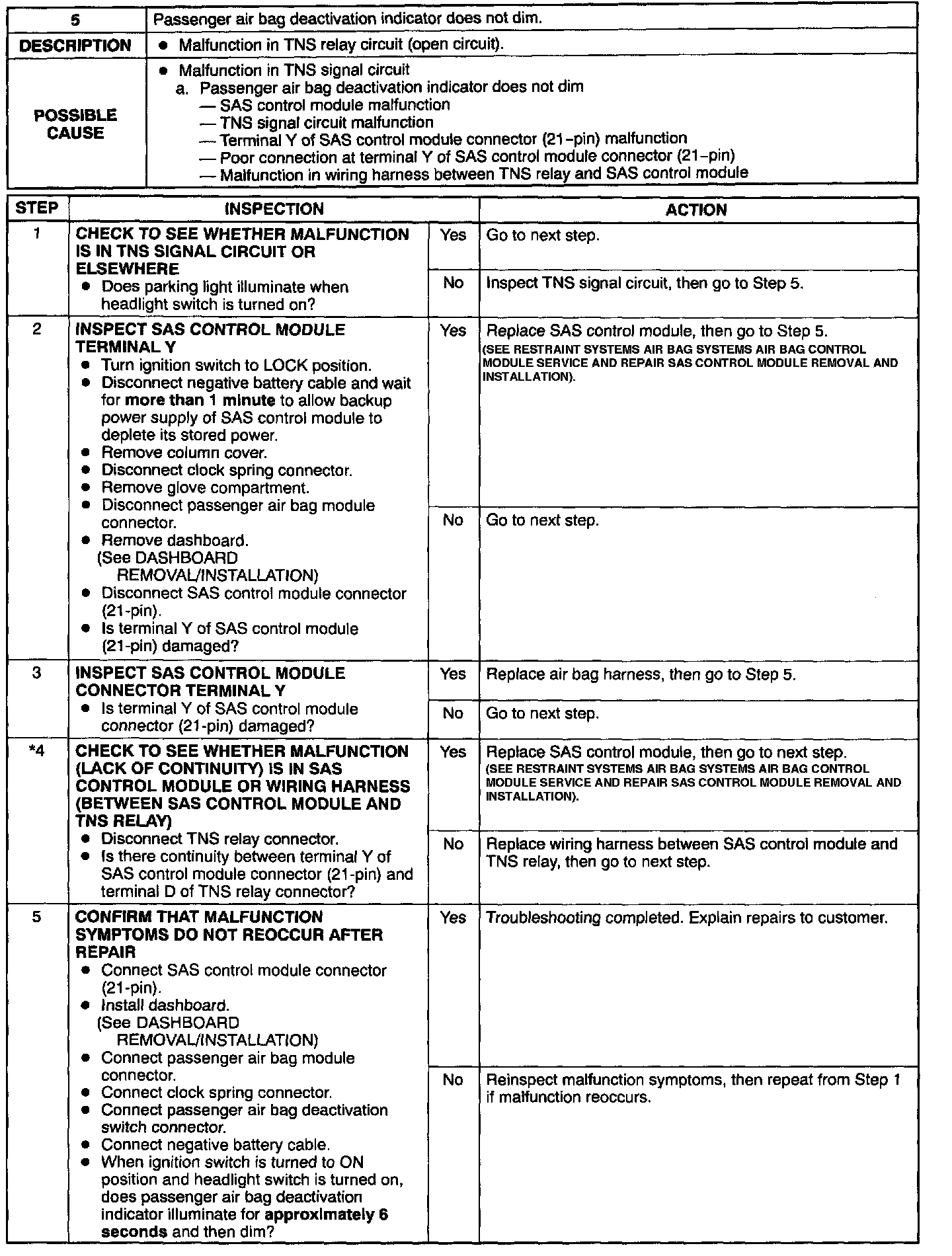

Steps 1 - 5:





PASSENGER AIR BAG DEACTIVATION INDICATOR DOES NOT DIM
When performing an asterisks (*) troubleshooting inspection, shake the wiring harness and connectors while doing the inspection to discover whether poor contact points are the cause of any intermittent malfunctions. If there is a problem, check to make sure connectors, terminals and wiring harness are connected correctly and undamaged.
