Air Duct: Service and Repair

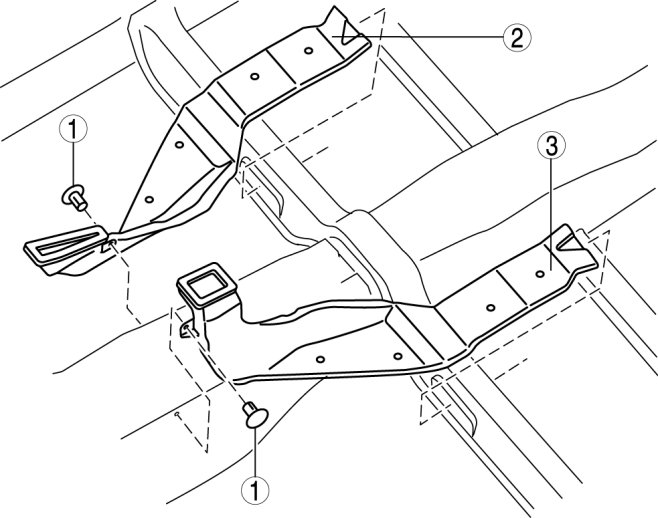

REAR HEAT DUCT COMPONENT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Front seats Removal and Replacement

b. Front scuff plates Front Scuff Plate Removal/Installation

c. Front side trims Front Side Trim Removal/Installation

d. Steering shaft cover Without Advanced Keyless Entry And Push Button Start System With Advanced Keyless Entry And Push Button Start System

e. Upper panel Upper Panel Removal/Installation

f. Decoration panel Decoration Panel Removal/Installation

g. Shift knob (MTX) Locations

h. Shift panel Shift Panel Removal/Installation

i. Center panel lower Center Panel Lower Removal/Installation

j. Rear console Rear Console Removal/Installation

k. Fuel-filler lid opener bezel Fuel-Filler Lid Opener Bezel Removal/Installation

3. Turn the floor covering over. Service and Repair

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.
