Home >> Mercury >> 2001 >> Sable V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Internal Components

Internal Components

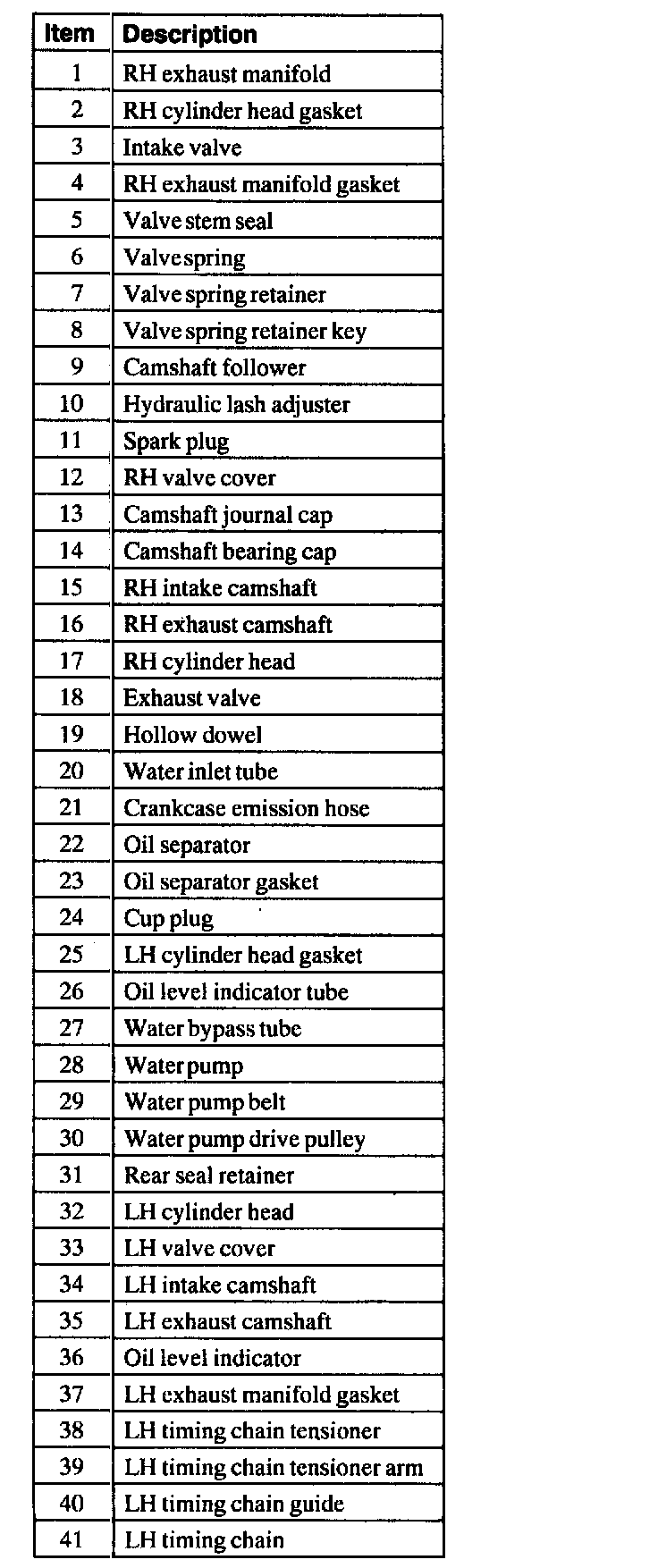

Part 1 Of 3:

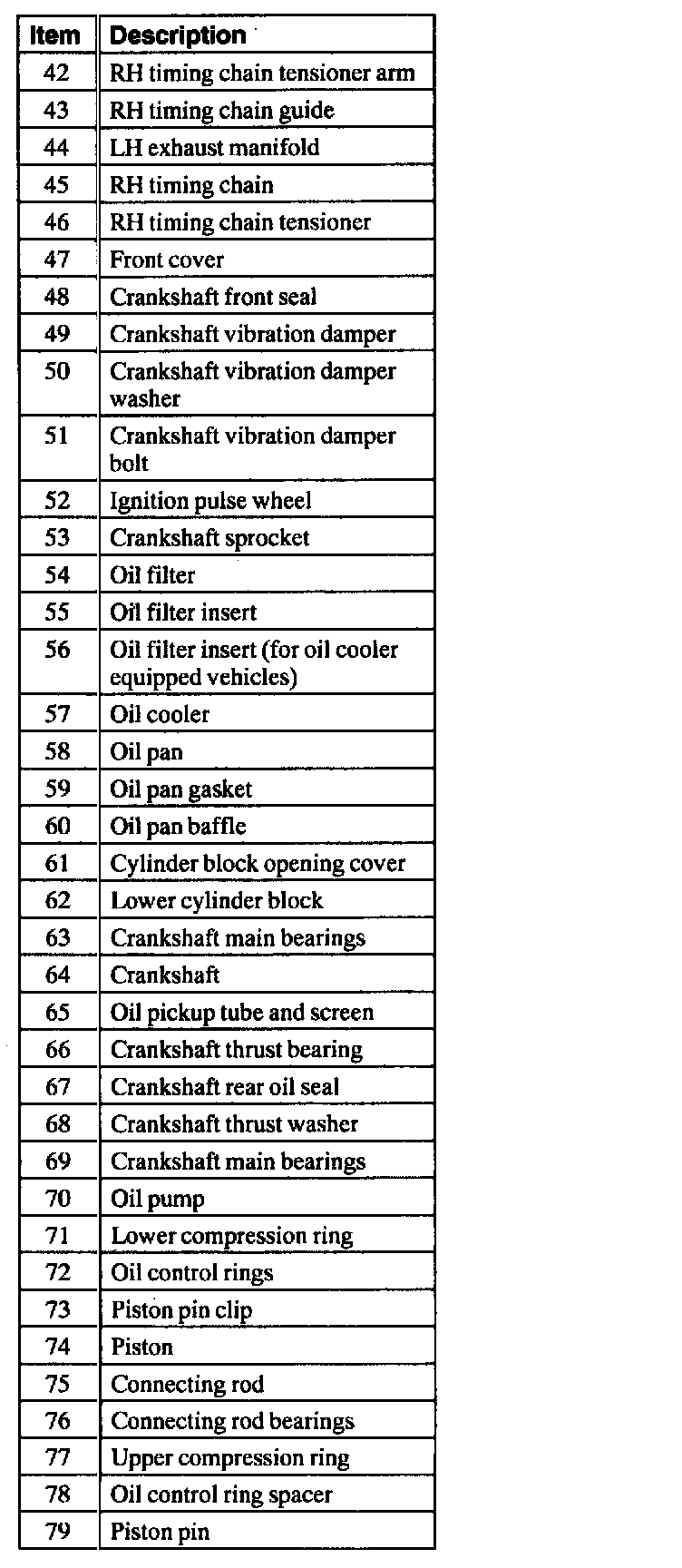

Part 2 Of 3:

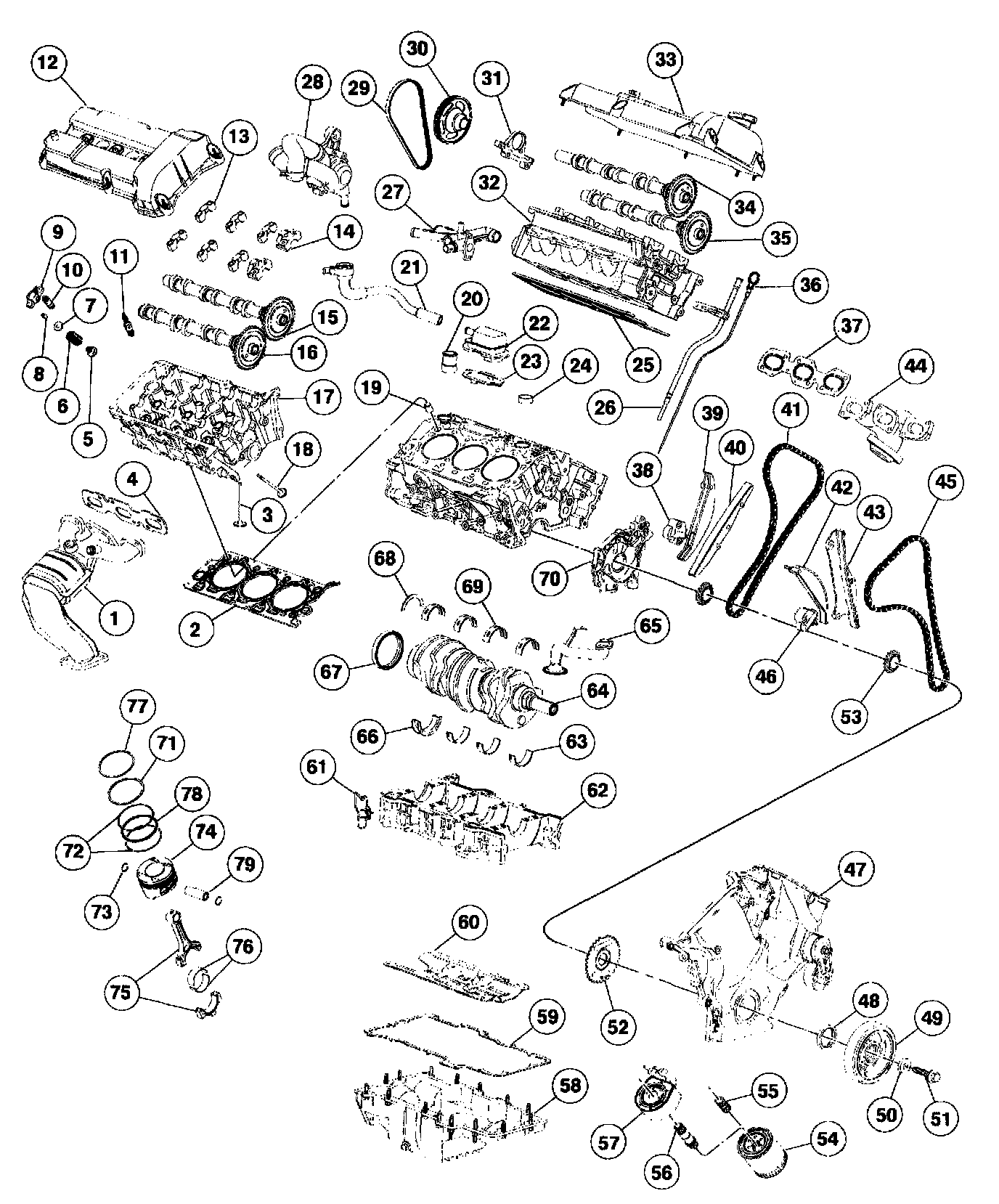

Part 3 Of 3:
