Engine Control Module

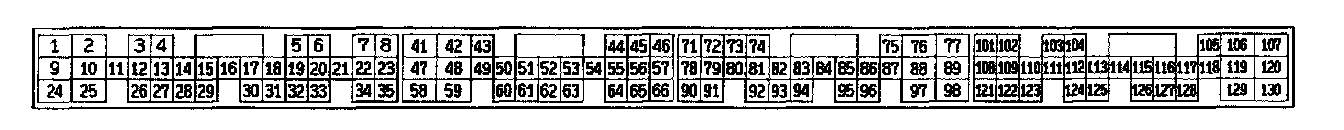

Connector View:






Part 1 Of 4:





Part 2 Of 4:





Part 3 Of 4:





Part 4 Of 4:
