Performance Check - EST
Performance Check - EST

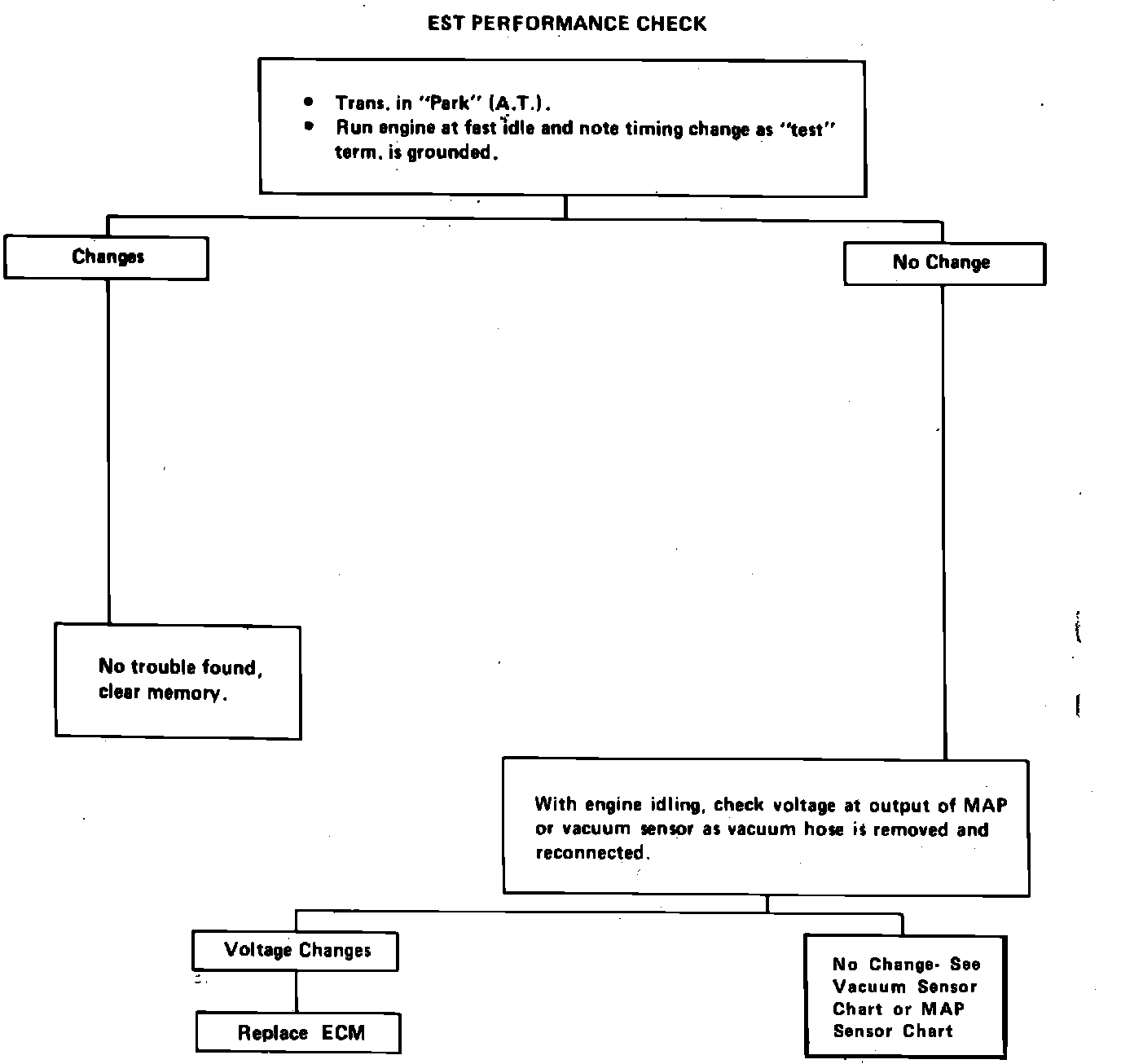

Fig.4a EST performance check. Oldsmobile carbureted models w/V8-307/5.0L(VIN codes Y & 9):
