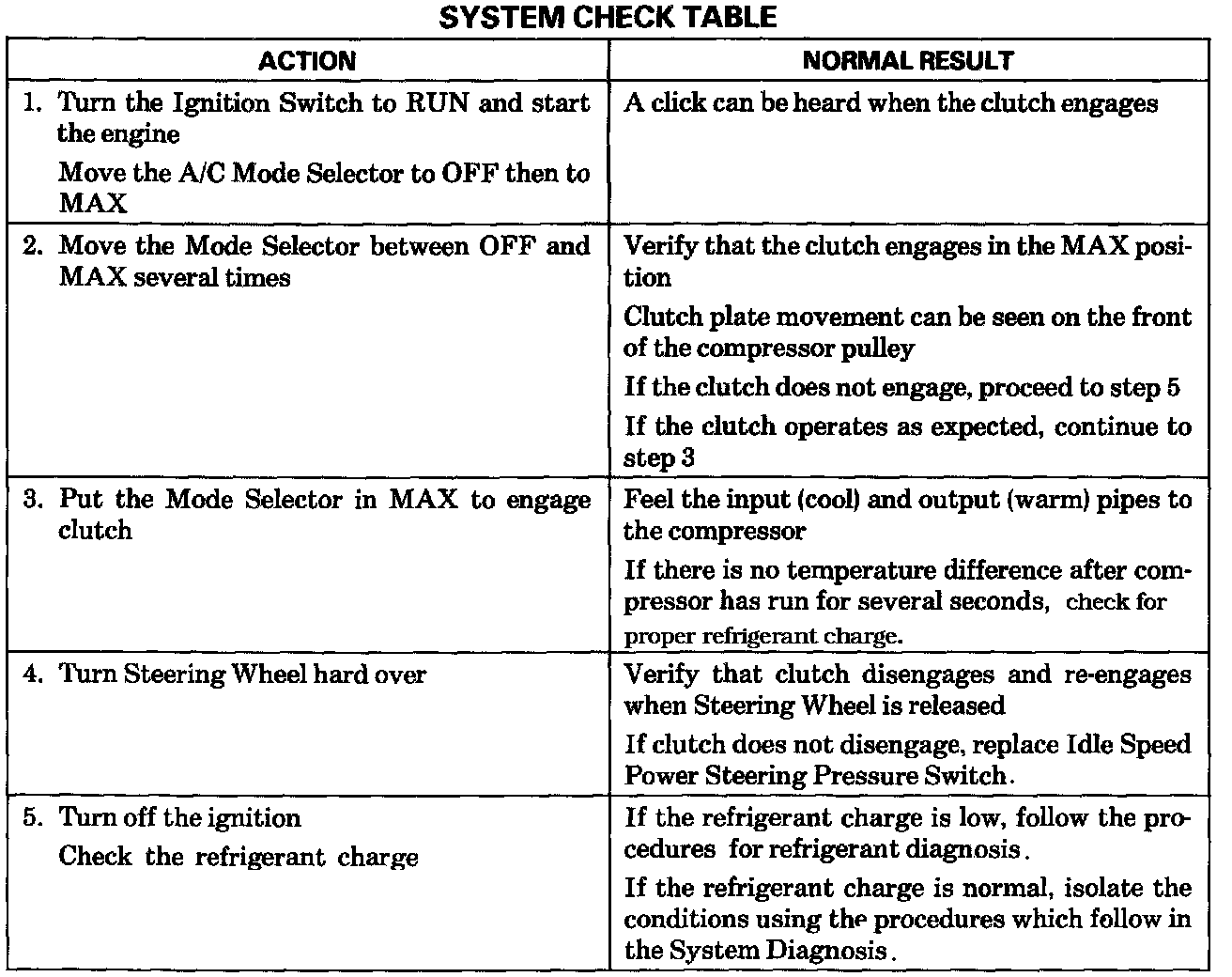

System Check Table

System Check Table:

^ Complete the A/C System Check in as a guide to normal operation of the A/C System. Testing and Inspection
^ Use the System Check Table as a guide to normal operation of the Compressor Controls.
^ Refer Diagnostic Test when a result is other than normal. Testing and Inspection
