Home >> Oldsmobile >> 1998 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lamp Control Module >> Lamp Control Module (LCM) CONN C1

Lamp Control Module (LCM) CONN C1

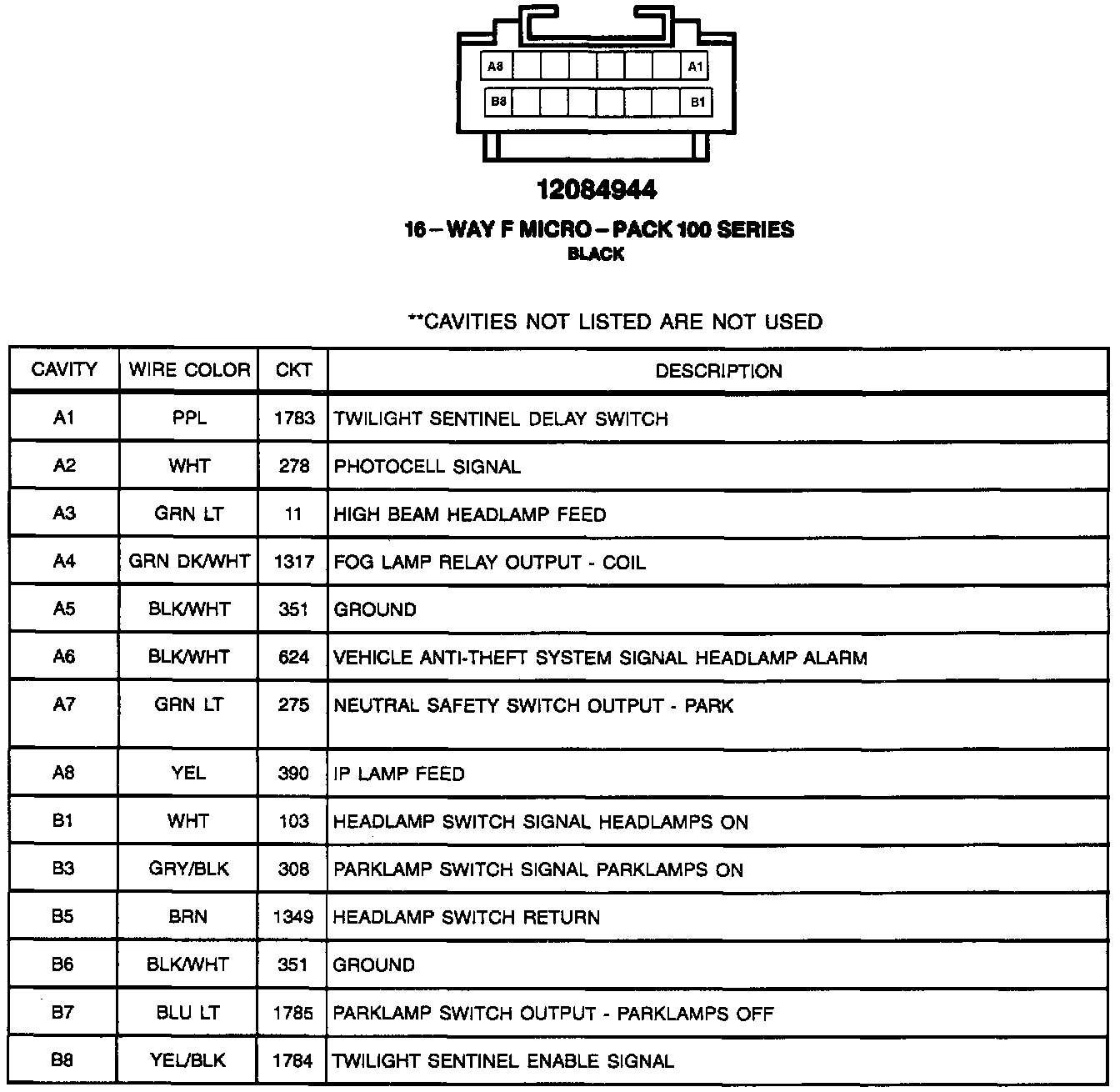

Lamp Control Module C1:
