Home >> Pontiac >> 1997 >> Firebird V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Ignition Control Module

Ignition Control Module

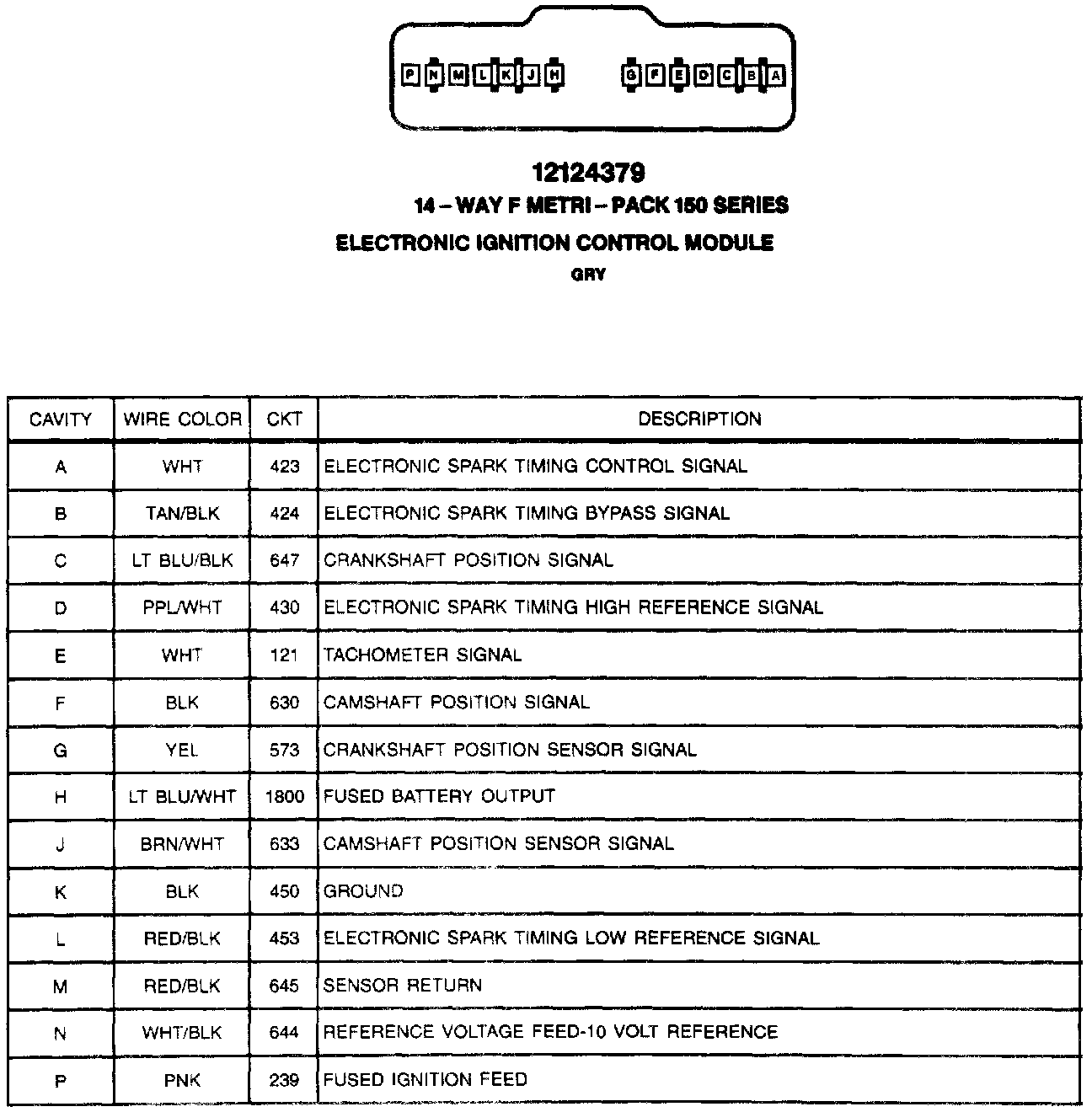

Electronic Ignition Control Module:
