Compressor HVAC
>>
With HD6/HT6 Compressor
With HD6/HT6 Compressor

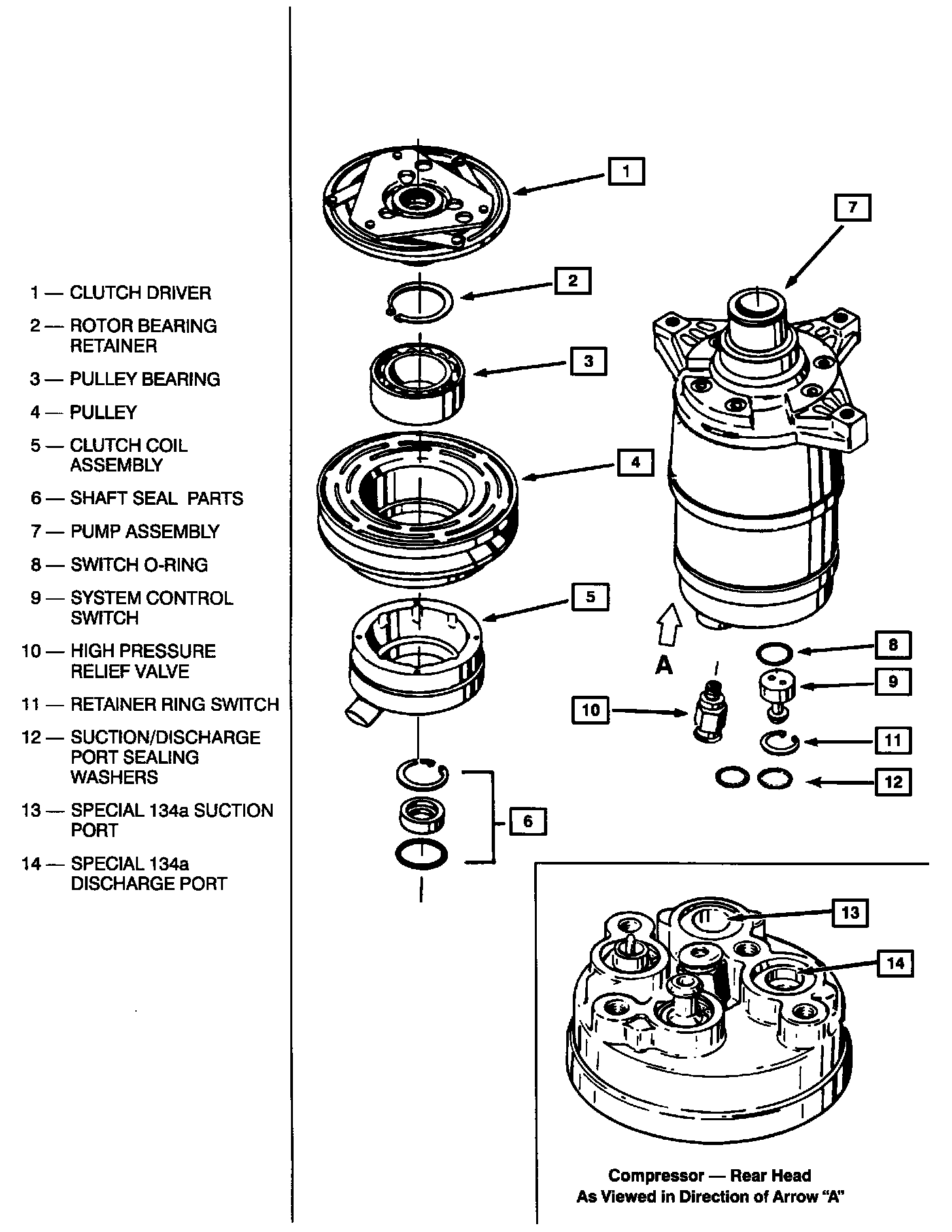

Compressor Components - Disassembly:
