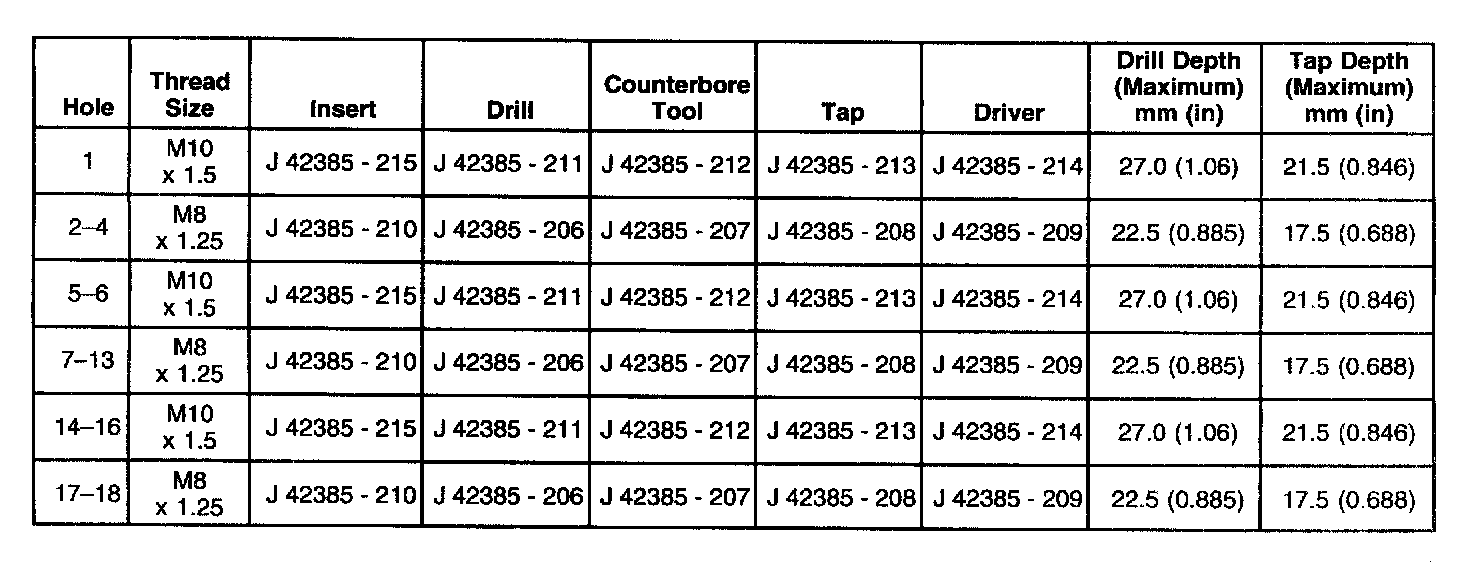

Home >> Pontiac >> 1999 >> Firebird V8-5.7L VIN G >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Specifications >> Thread Repair Specifications >> Engine Block-Rear View

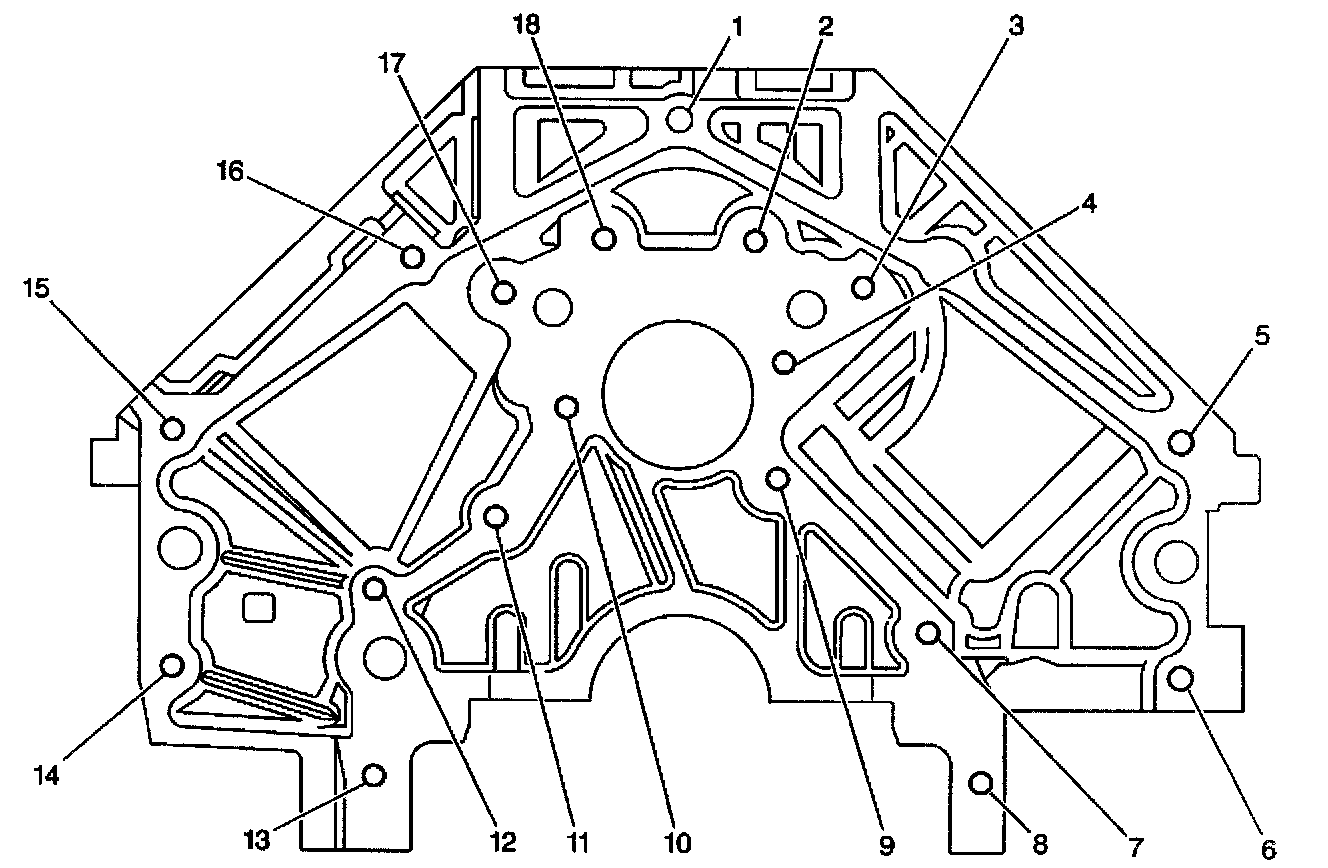

Engine Block-Rear View

Part 1 Of 2:



Part 2 Of 2:
