Home >> Pontiac >> 1999 >> Firebird V8-5.7L VIN G >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Thread Repair Specifications >> Cylinder Head-End View

Cylinder Head-End View

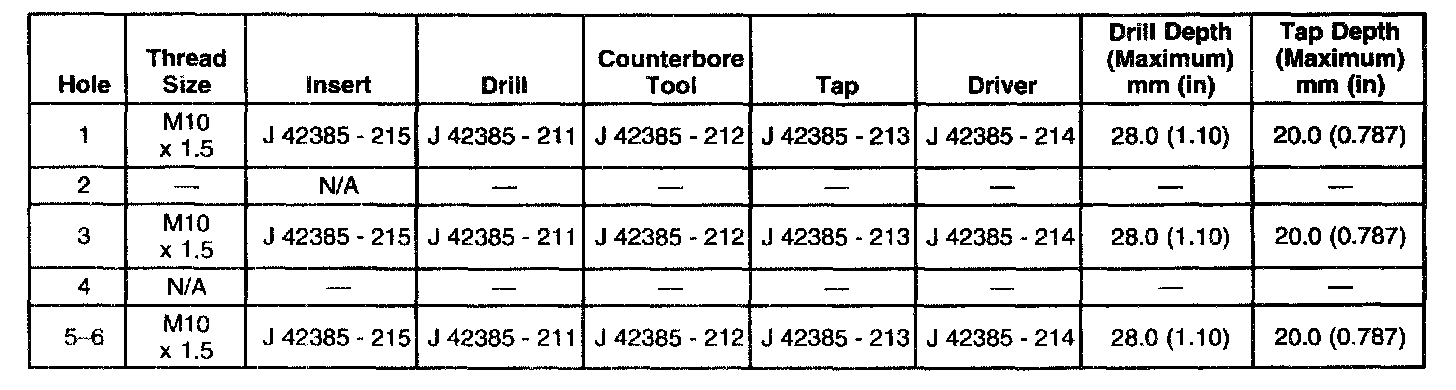

Part 1 Of 2:

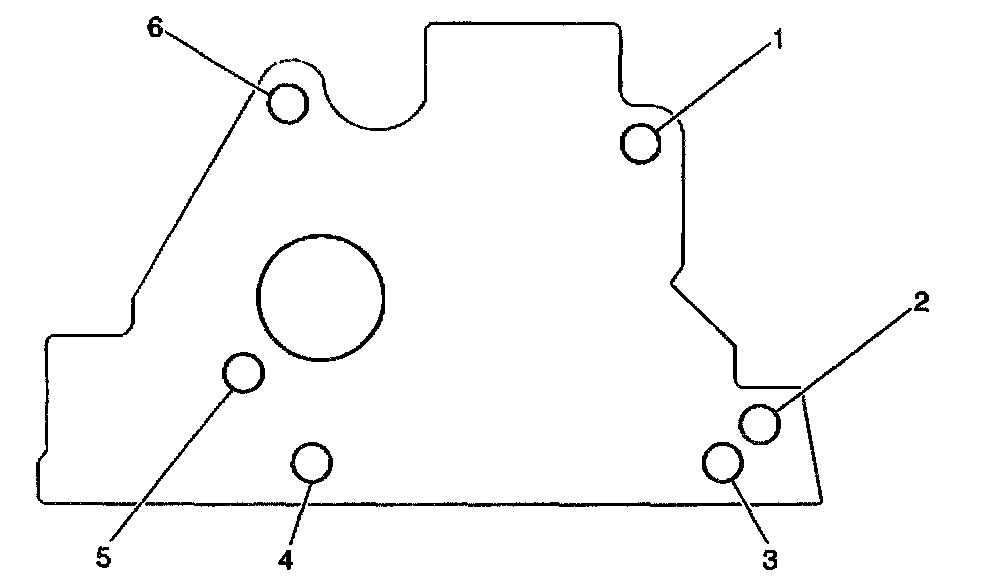

Part 2 Of 2:
