Home >> Toyota >> 2000 >> MR2 L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Fuel Tank

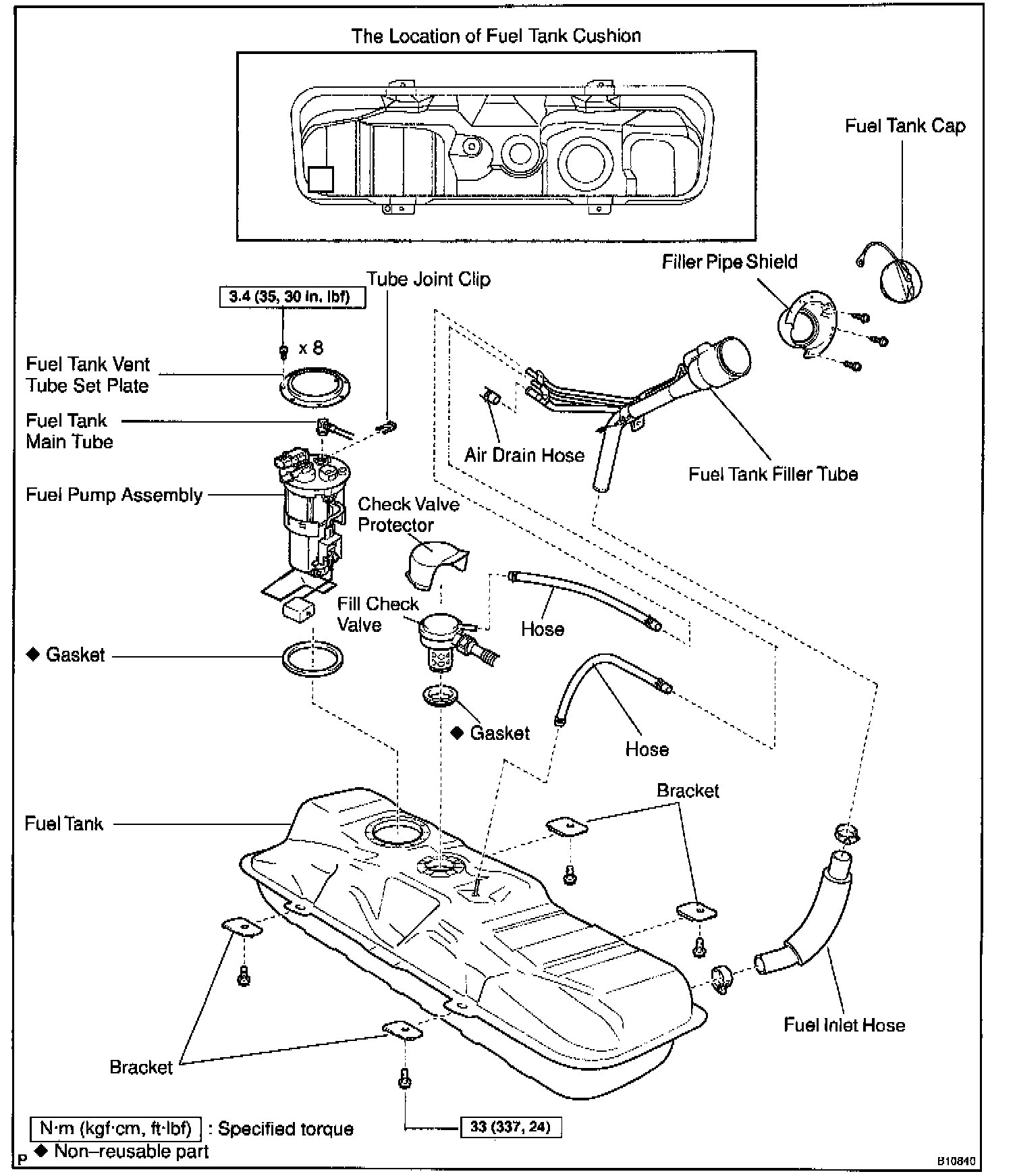

Fuel Tank






CAUTION:
- Always use new gaskets when replacing the fuel tank or component parts.
- Apply the proper torque to all parts tightened.
