Engine Service Data

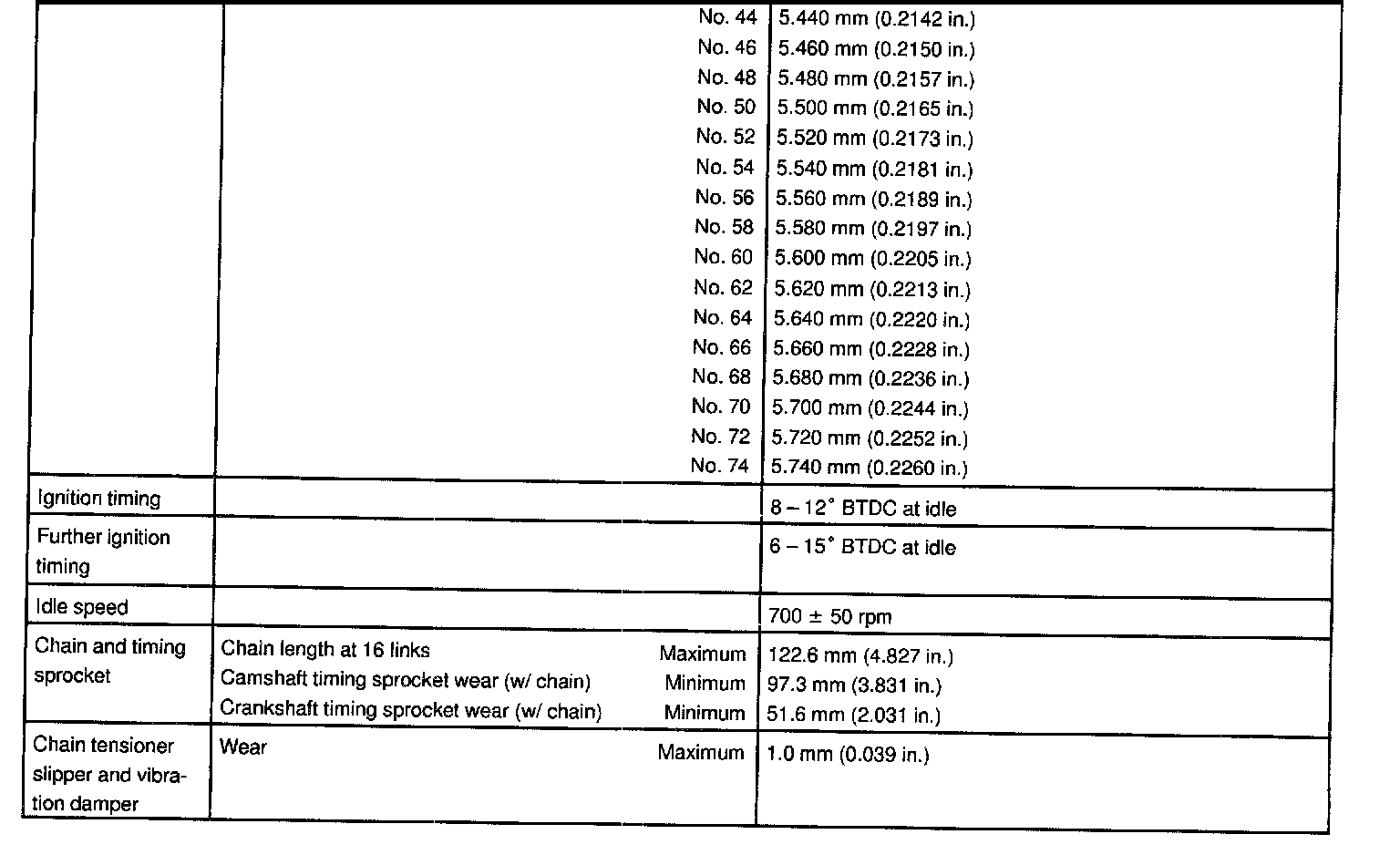

1ZZ-FE Engine Mechanical Data:

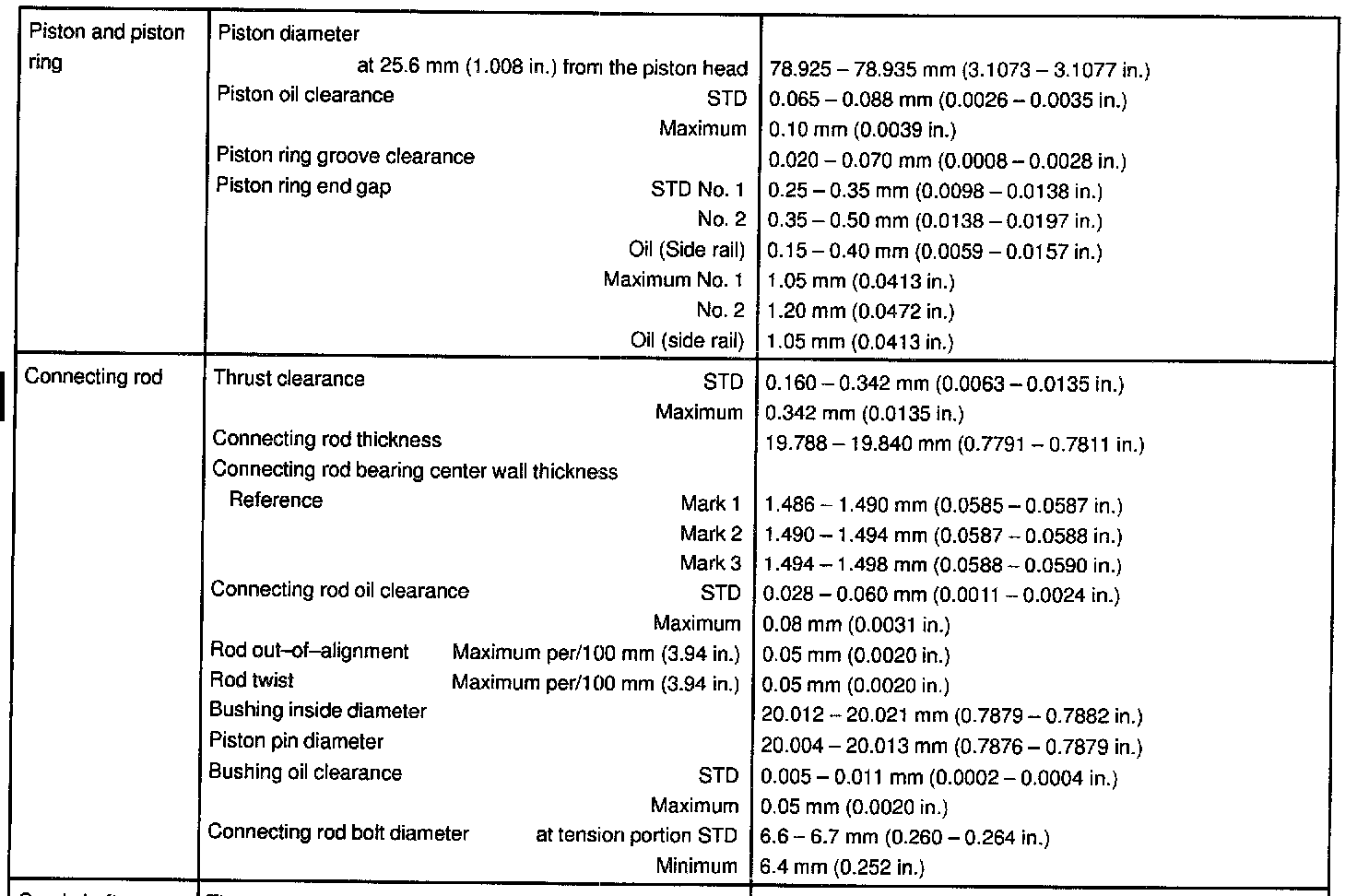

1ZZ-FE Engine Mechanical Cont.:

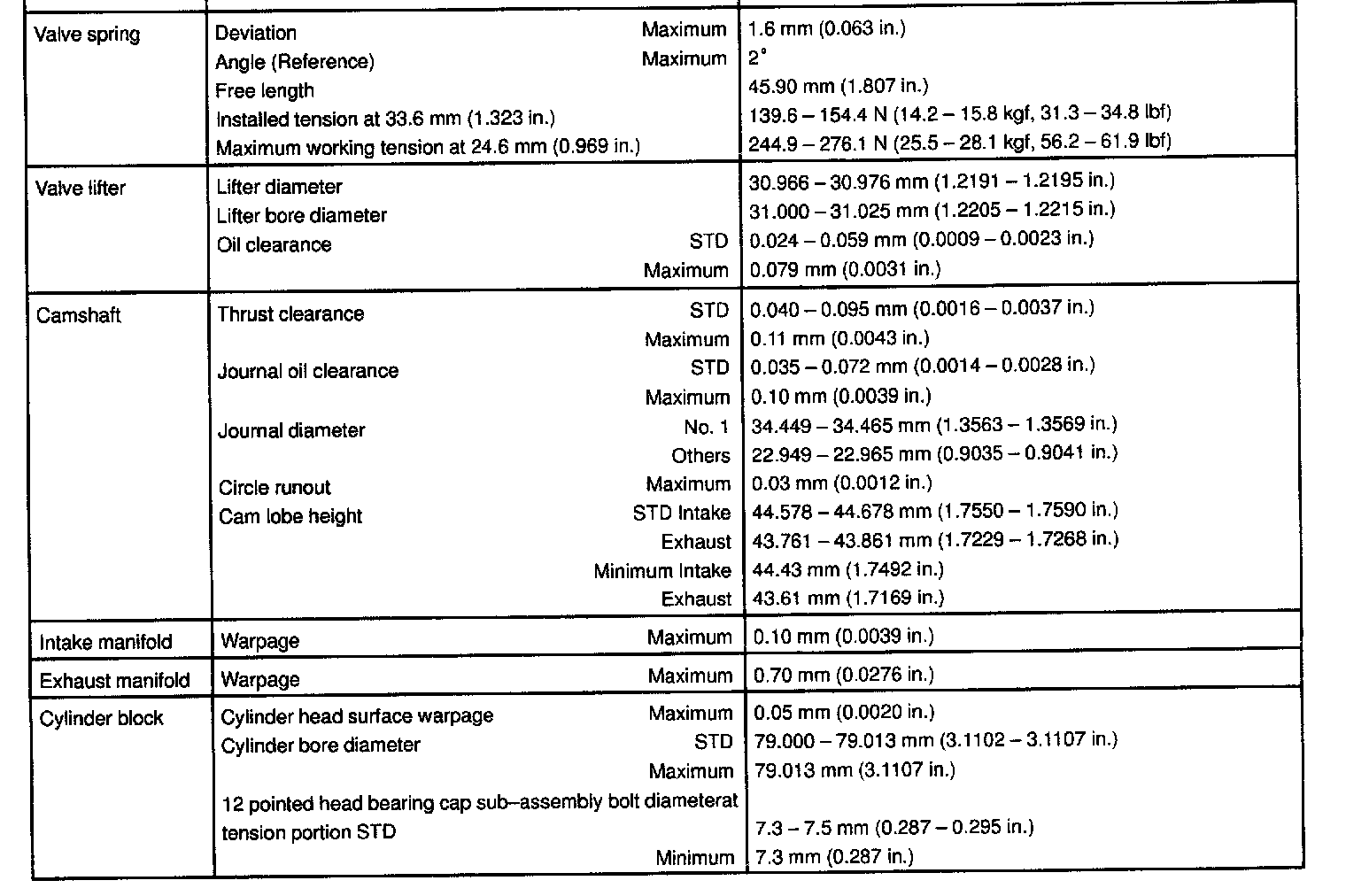

1ZZ-FE Engine Mechanical Cont.:




1ZZ-FE Engine Mechanical Cont.:





1ZZ-FE Engine Mechanical Cont.:




1ZZ-FE Engine Mechanical Cont.:
