Removal

DOOR LOCK: DOOR CONTROL RECEIVER: REMOVAL

1. REMOVE REAR DOOR SCUFF PLATE RH

HINT
Use the same procedure for the RH side and the LH side Removal

2. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH

HINT
Use the same procedure for the RH side and the LH side Removal

3. REMOVE REAR SEAT CUSHION ASSEMBLY Removal

4. REMOVE REAR SEAT SIDE GARNISH RH

HINT
Use the same procedure for the RH side and the LH side Removal

5. REMOVE ROOF SIDE INNER GARNISH BOARD RH

HINT
Use the same procedure for the RH side and the LH side Removal

6. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH

HINT
Use the same procedure for the RH side and the LH side Removal

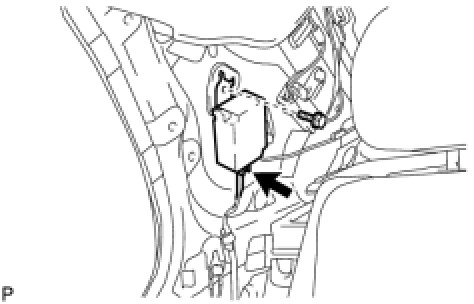

7. REMOVE DOOR CONTROL RECEIVER

(a) Disconnect the connector.





(b) Remove the bolt and the door control receiver.
