Intake Manifold

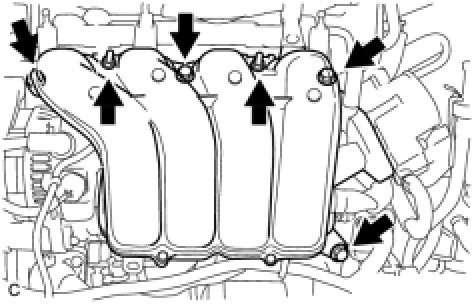

INTAKE MANIFOLDInstall the intake manifold and intake manifold stay with the 4 bolts and 2 nuts.
Torque 28 Nm (286 kgf-cm, 21 ft-lbf)
Install the intake manifold and intake manifold stay with the 4 bolts and 2 nuts.
Torque 28 Nm (286 kgf-cm, 21 ft-lbf)
