Service Data





SPECIFICATIONS: 1AR-FE ENGINE MECHANICAL: SERVICE DATA

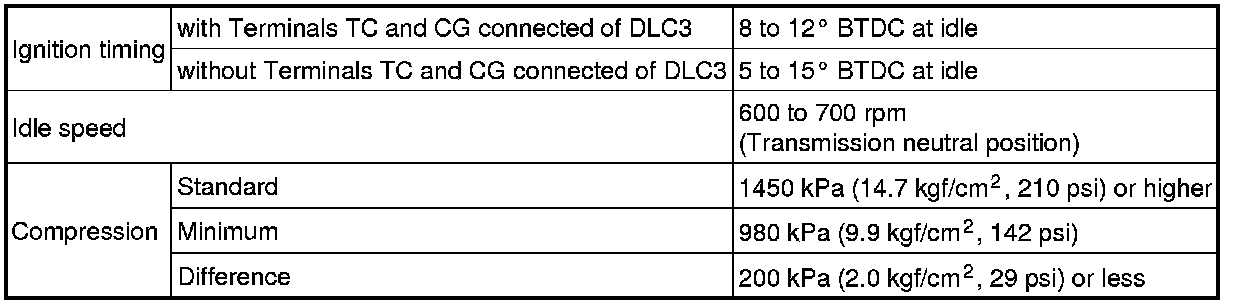

ENGINE

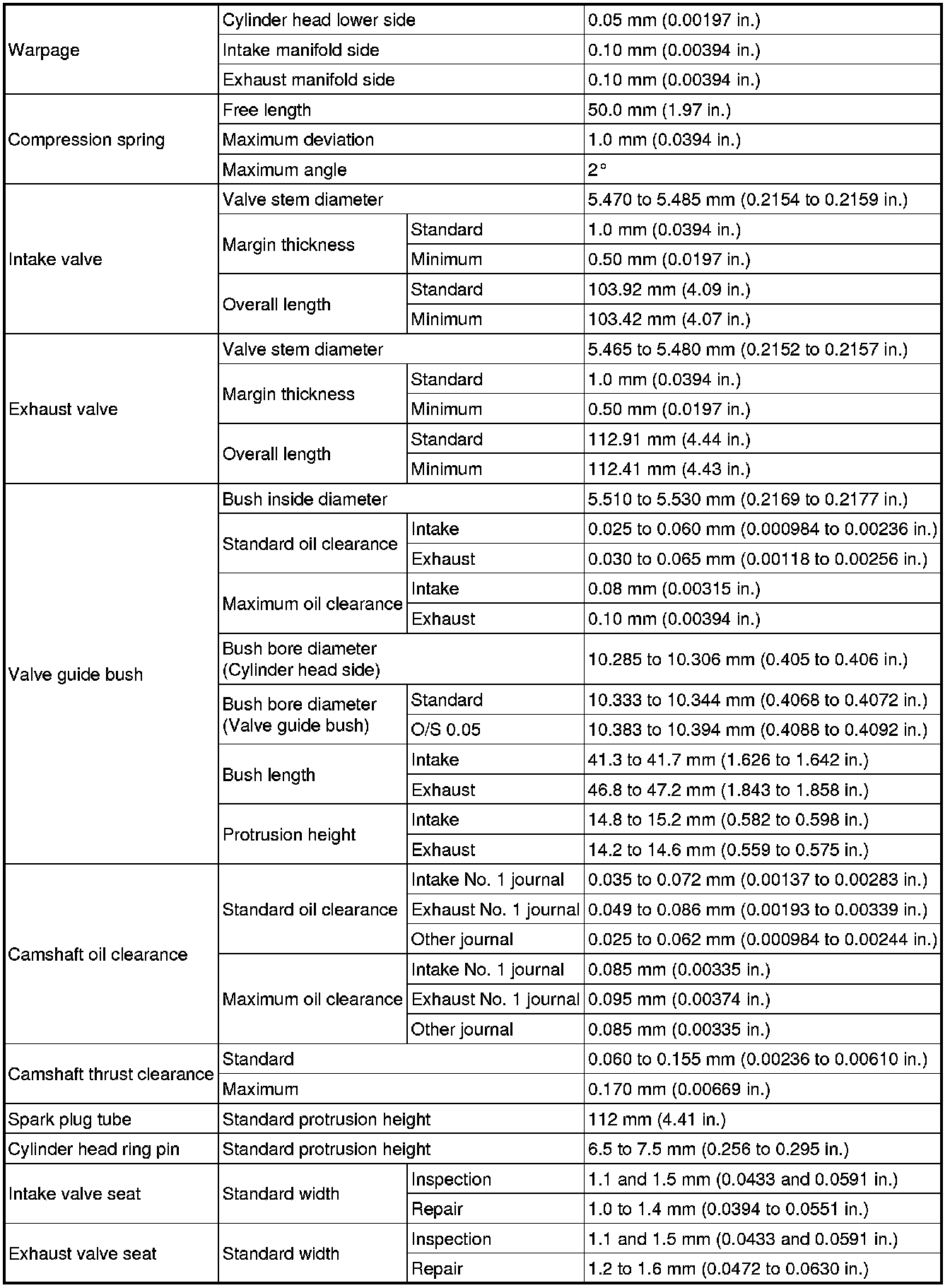

CYLINDER HEAD

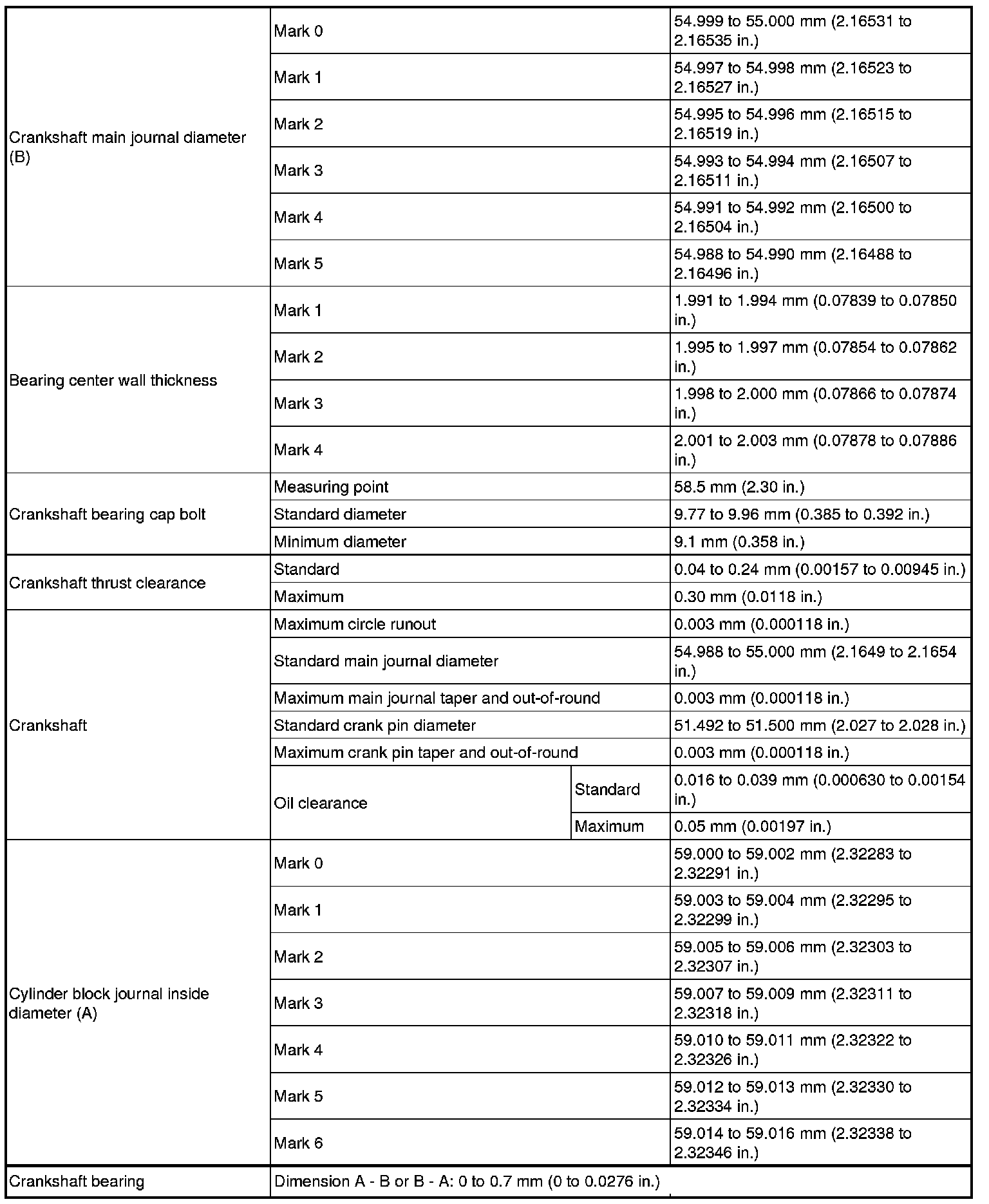

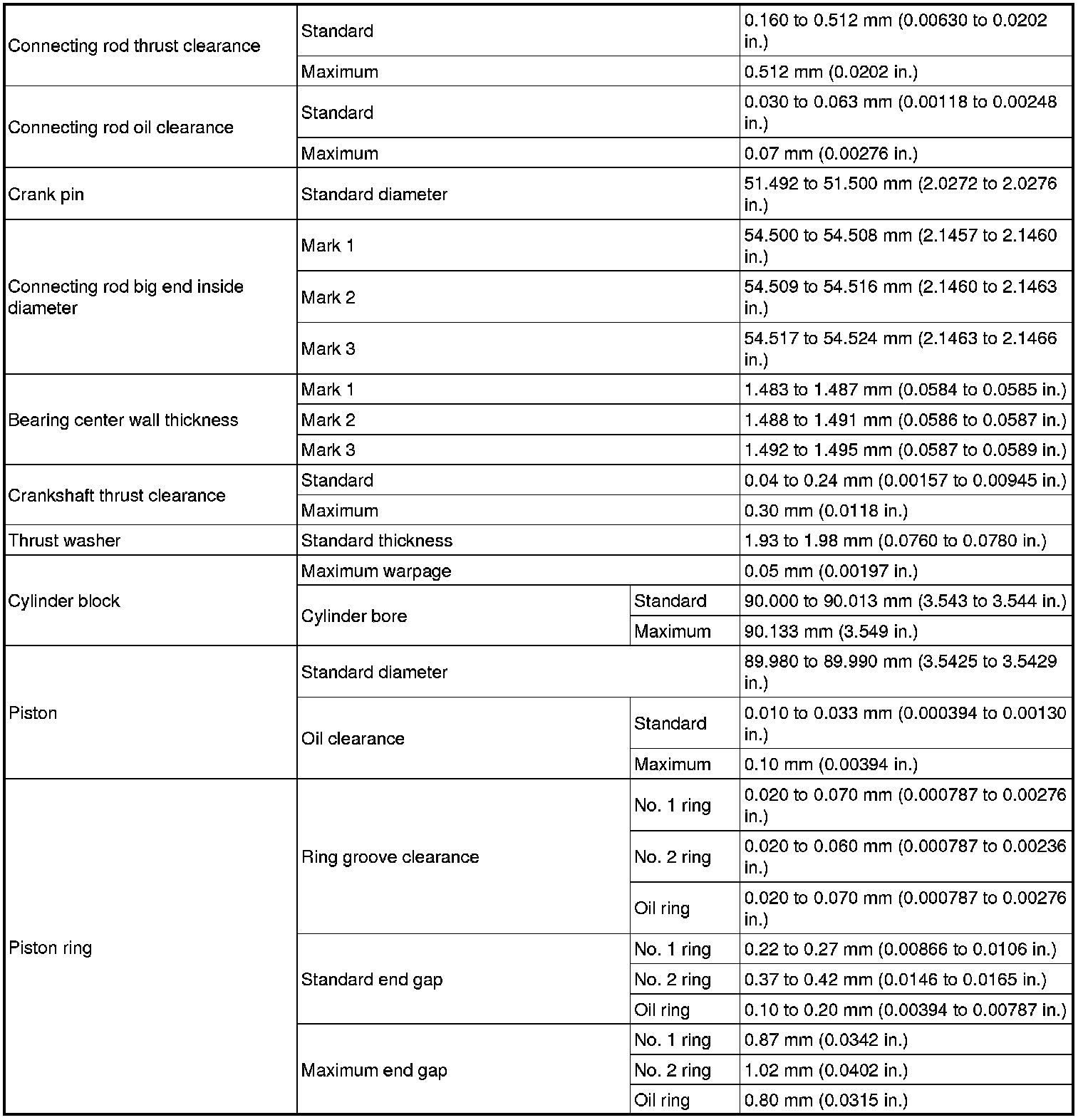

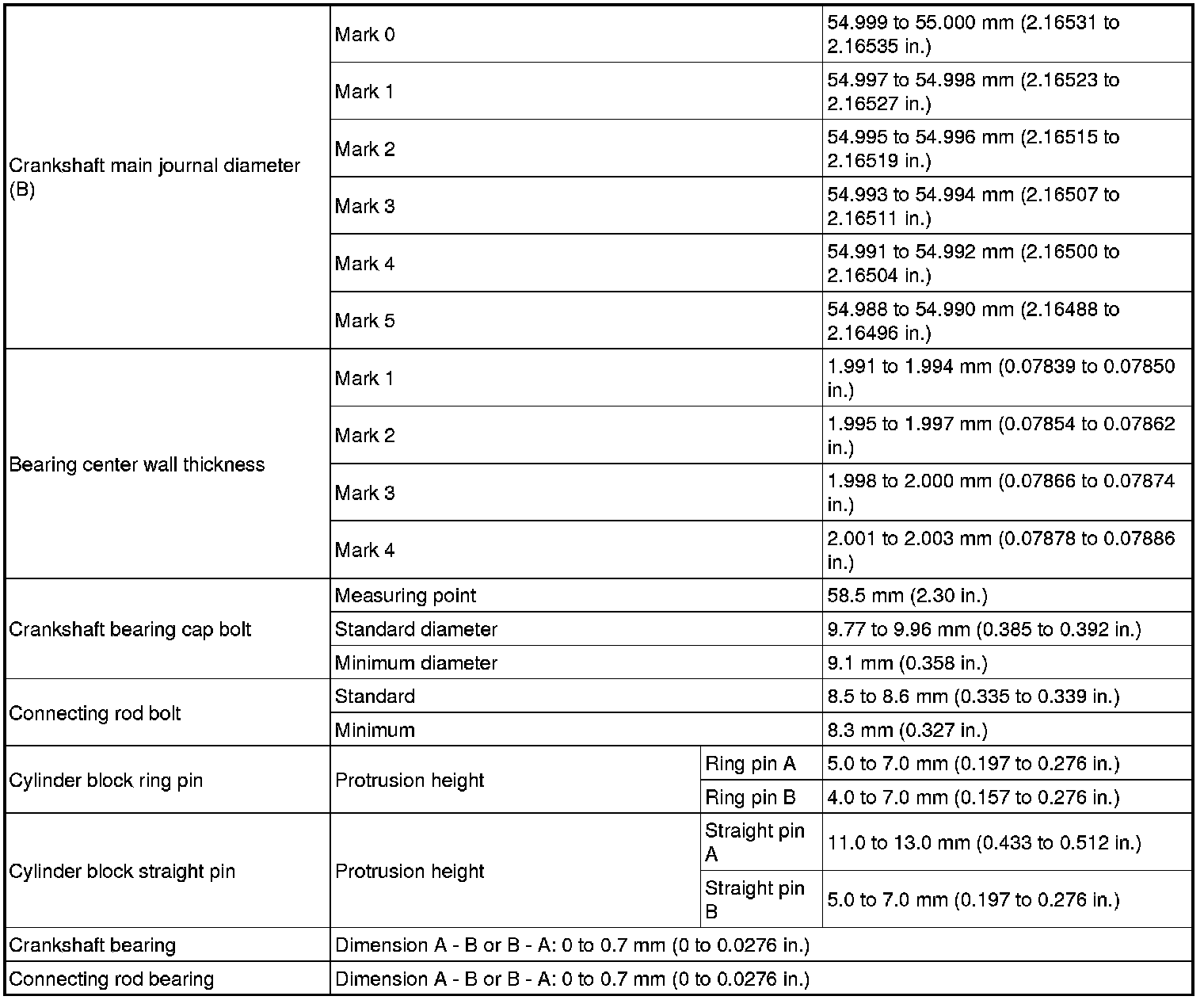

CYLINDER BLOCK

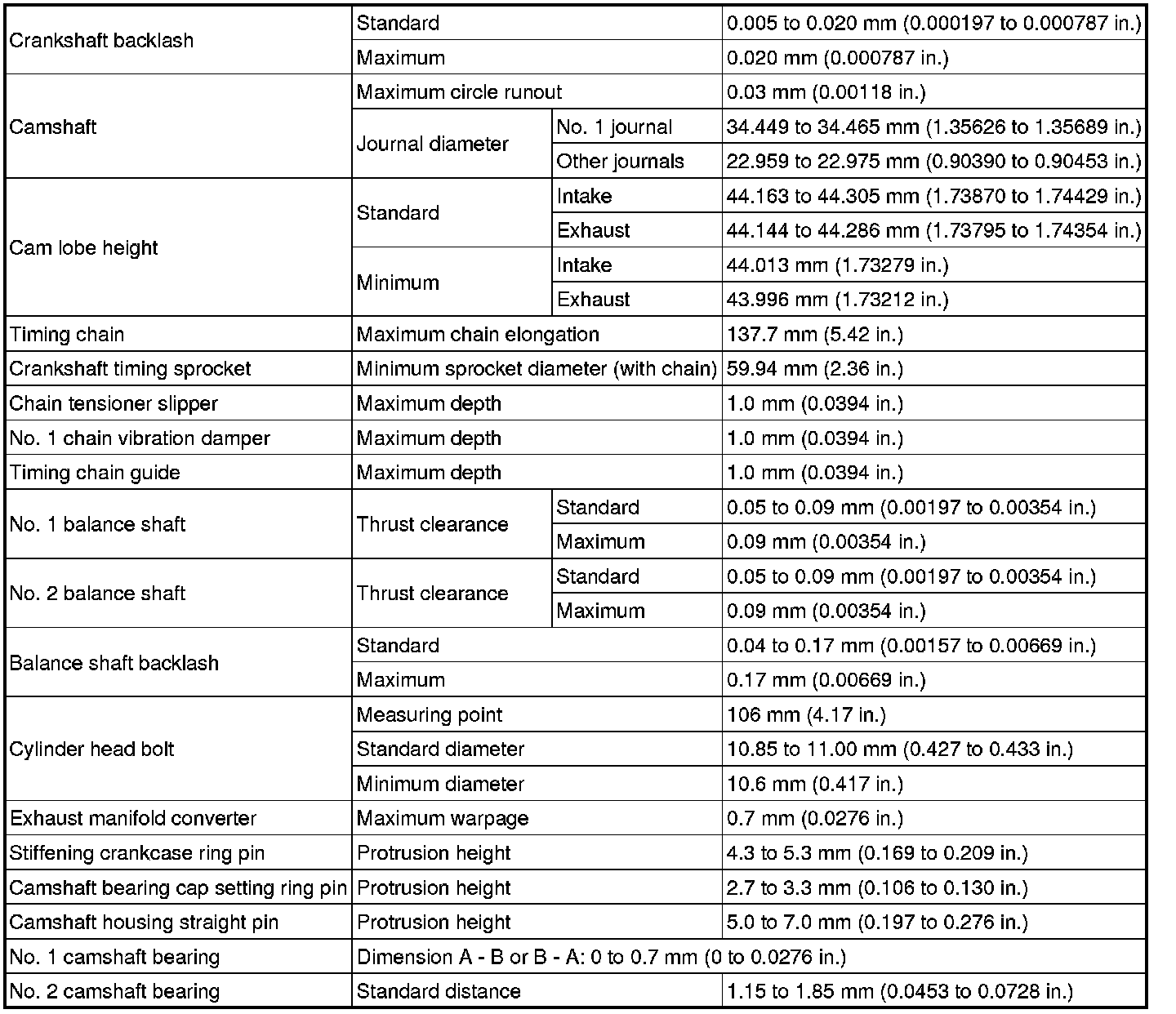

ENGINE UNIT
