Service Data

SPECIFICATIONS: ALIGNMENT / HANDLING DIAGNOSIS: SERVICE DATA

Measure the vehicle height.

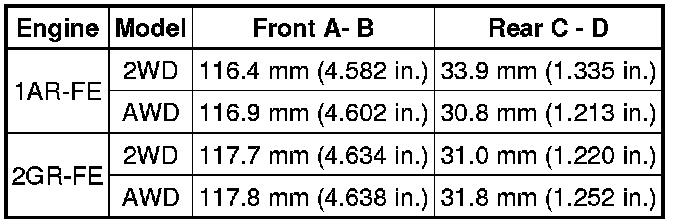

Vehicle Height (Unloaded Vehicle)

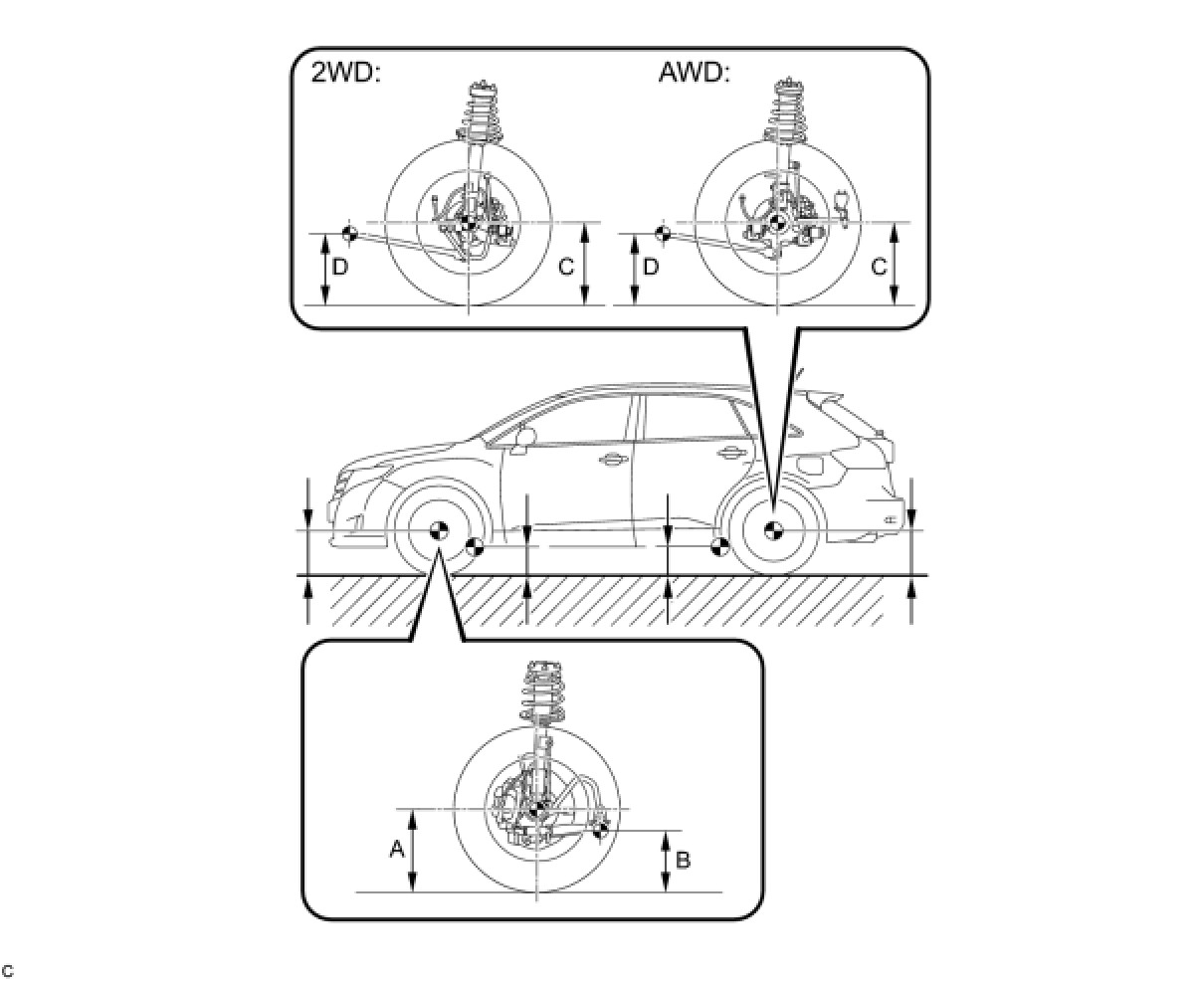

Measurement points:

*A: Ground clearance of front wheel center

*B: Ground clearance of No. 2 lower suspension arm bushing set bolt center

*C: Ground clearance of rear wheel center

*D: Ground clearance of strut rod set bolt center

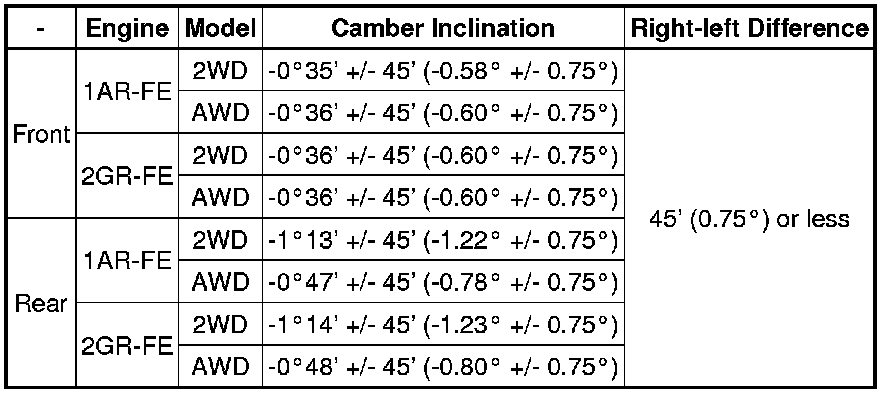

Camber (Unloaded Vehicle)

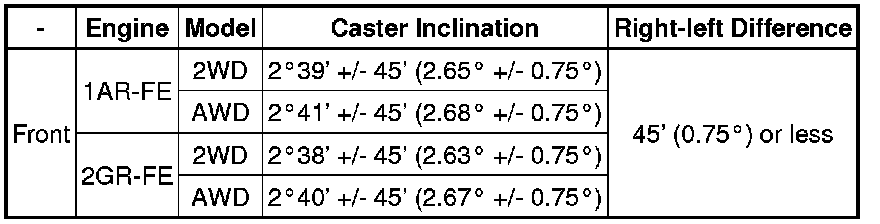

Caster (Unloaded Vehicle)






Steering Axis Inclination (Unloaded Vehicle)

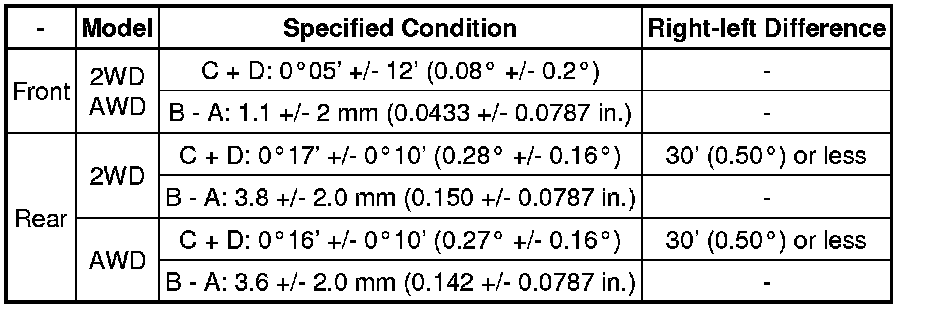

Toe-in






Wheel Turning Angle (Unloaded Vehicle)
