Body Control Module



Signal Description, Accessory Electronic Module (AEM)

Signal specification

NOTE: It is important to connect the breakout box and check the ground terminals before taking readings.

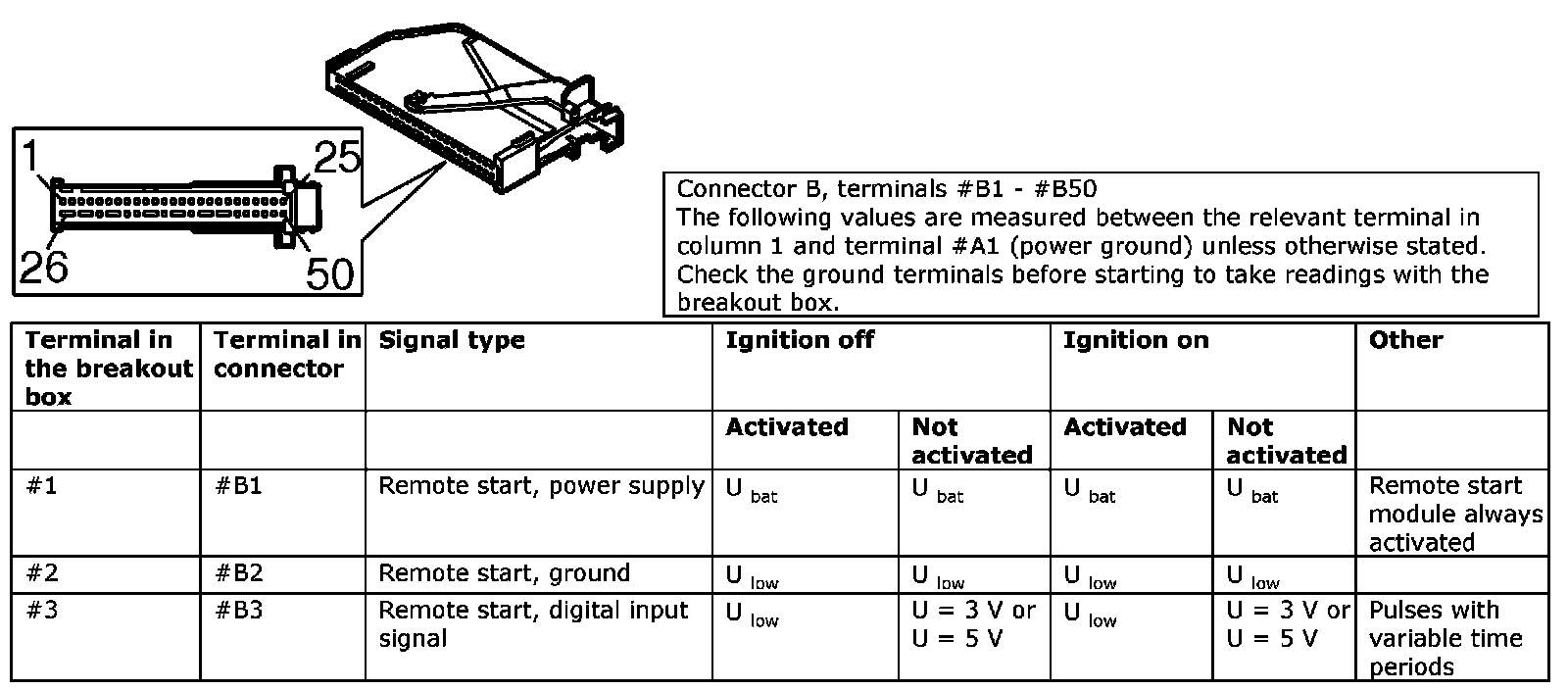

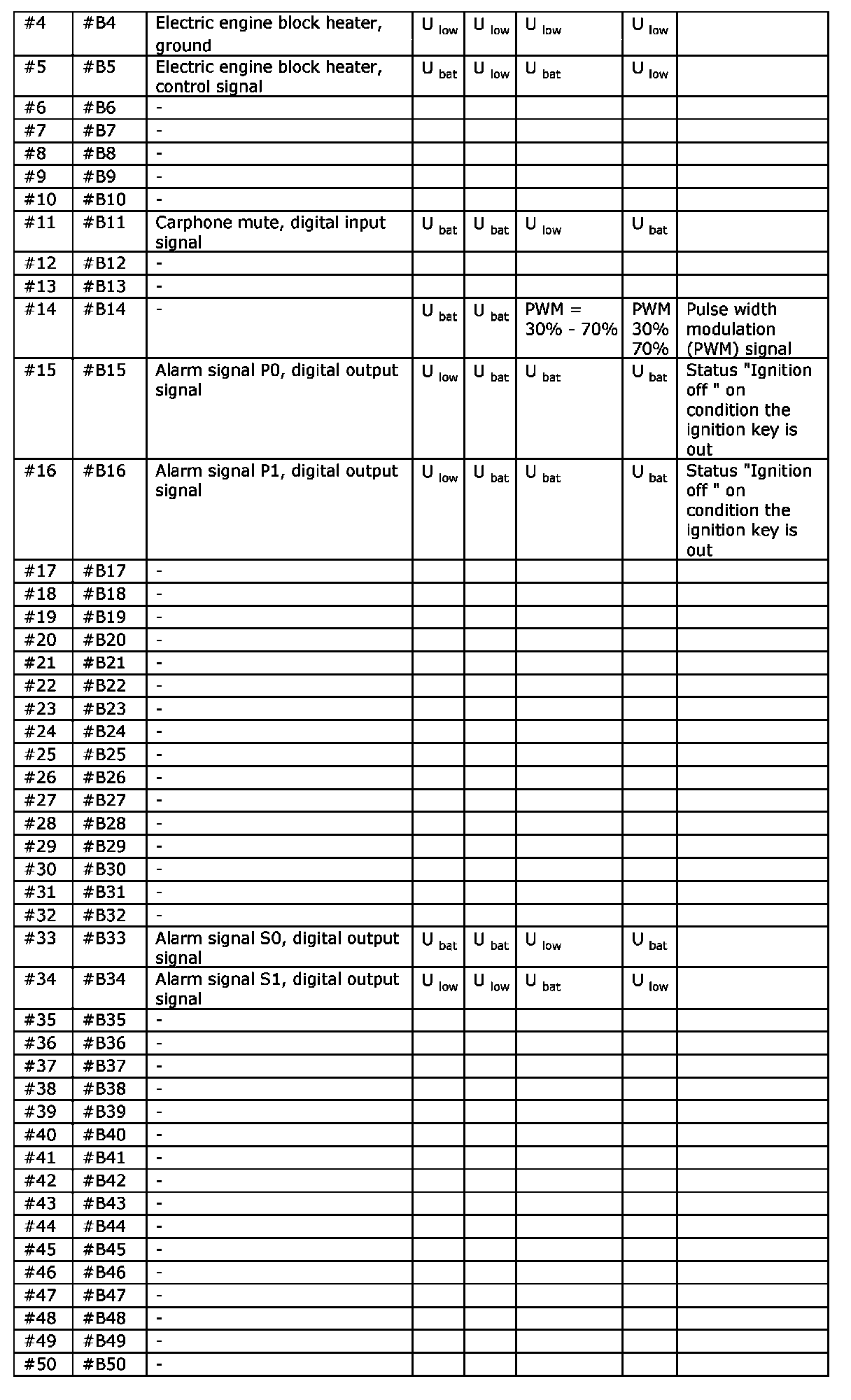

Part 1:

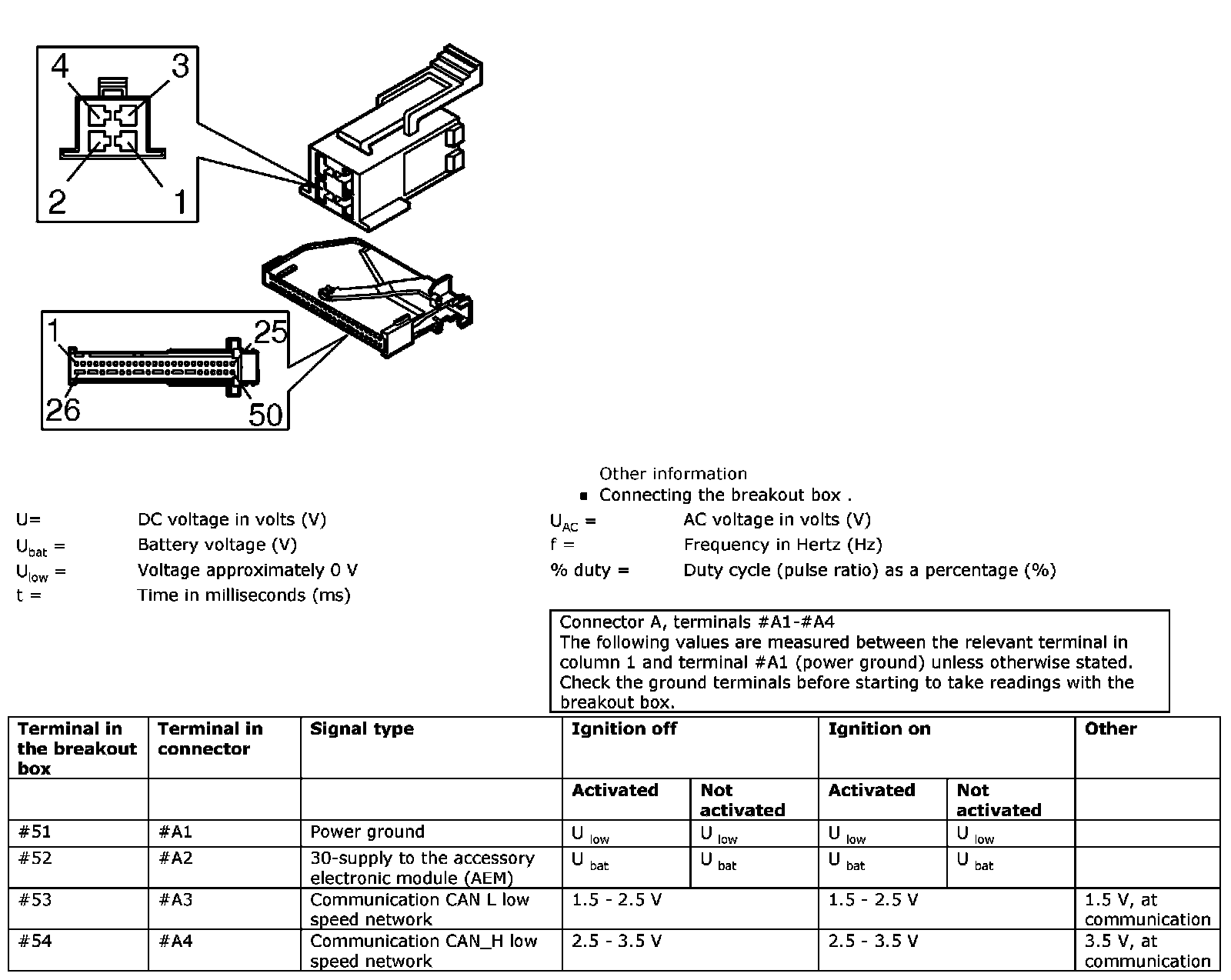

Part 2:
