Keyless Entry Module

Signal Description, Keyless Vehicle Module (KVM)

Signal specification

General
All values given below are between the terminals stated in column 1 and terminal #B5 (power ground). This applies unless otherwise indicated in brackets.

NOTE: It is important to connect the breakout box and check the ground terminals before taking readings.

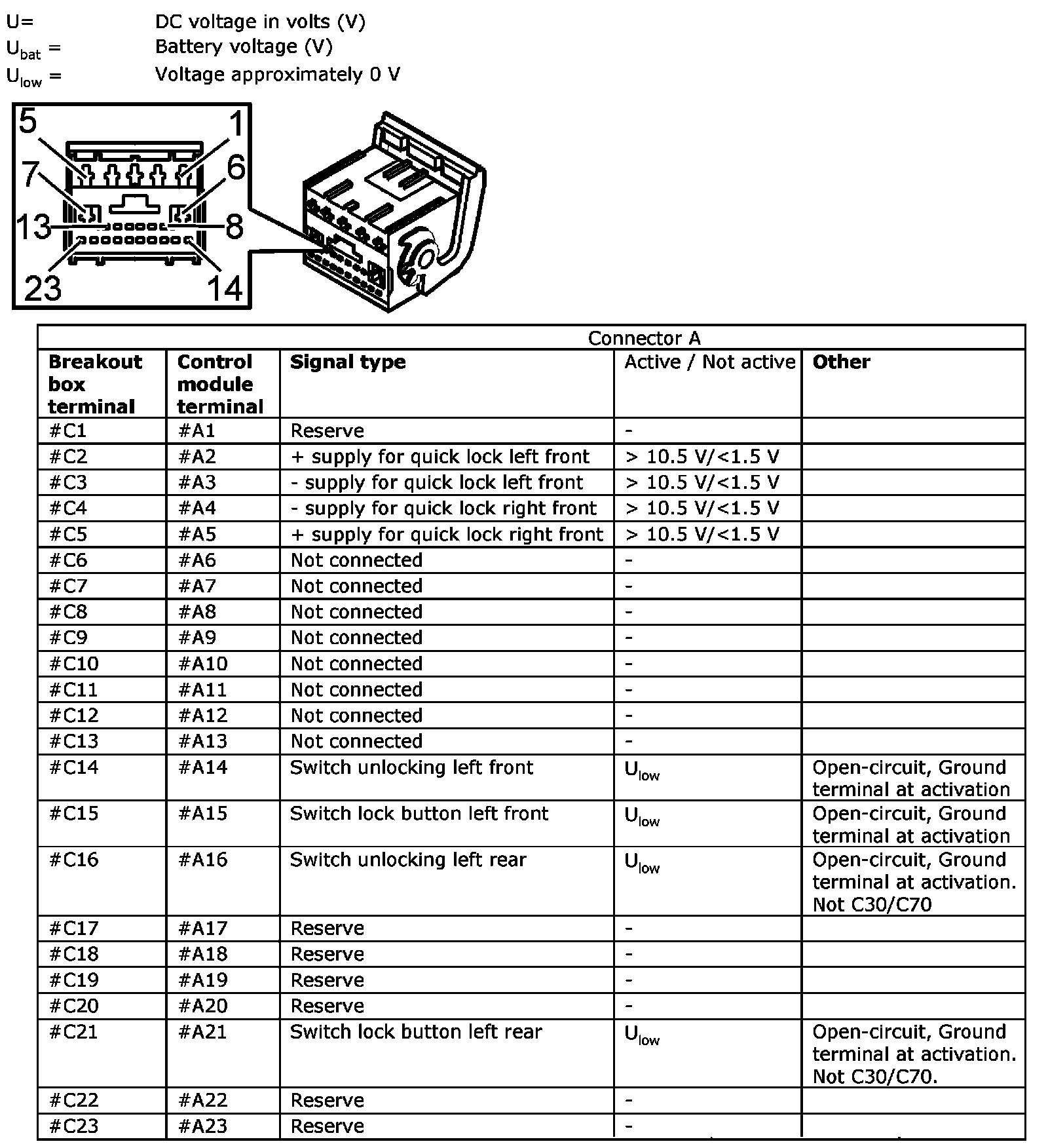

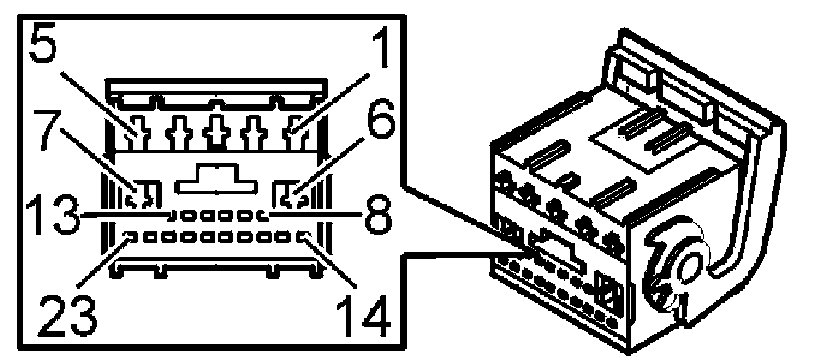

Connector A:

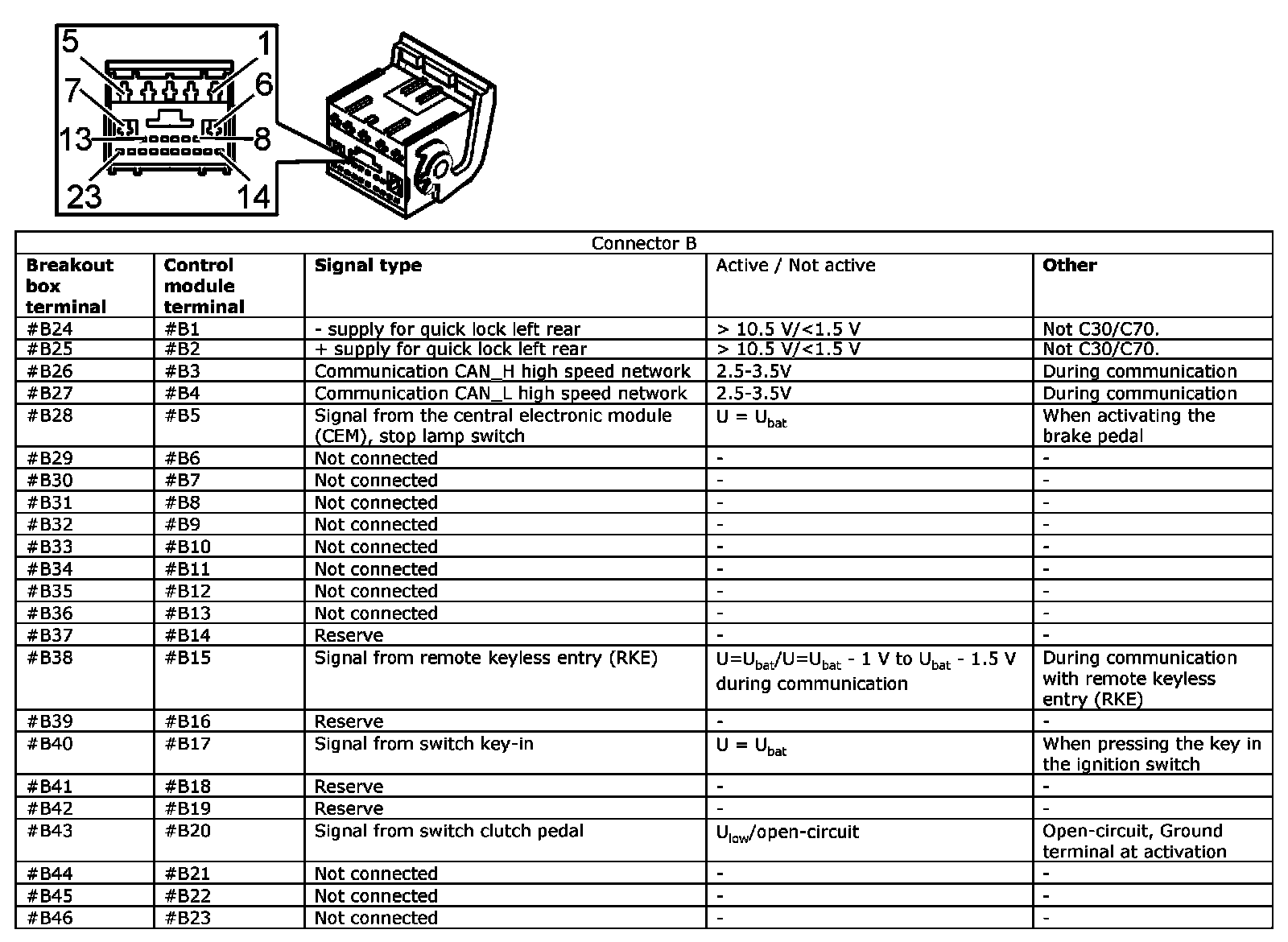

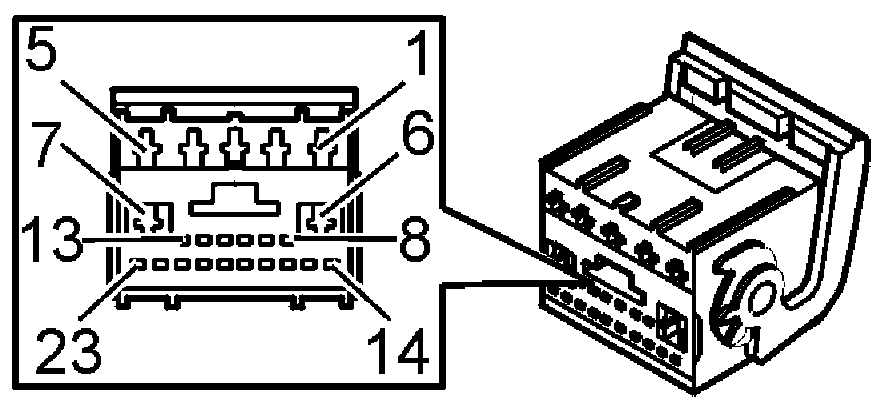

Connector B:

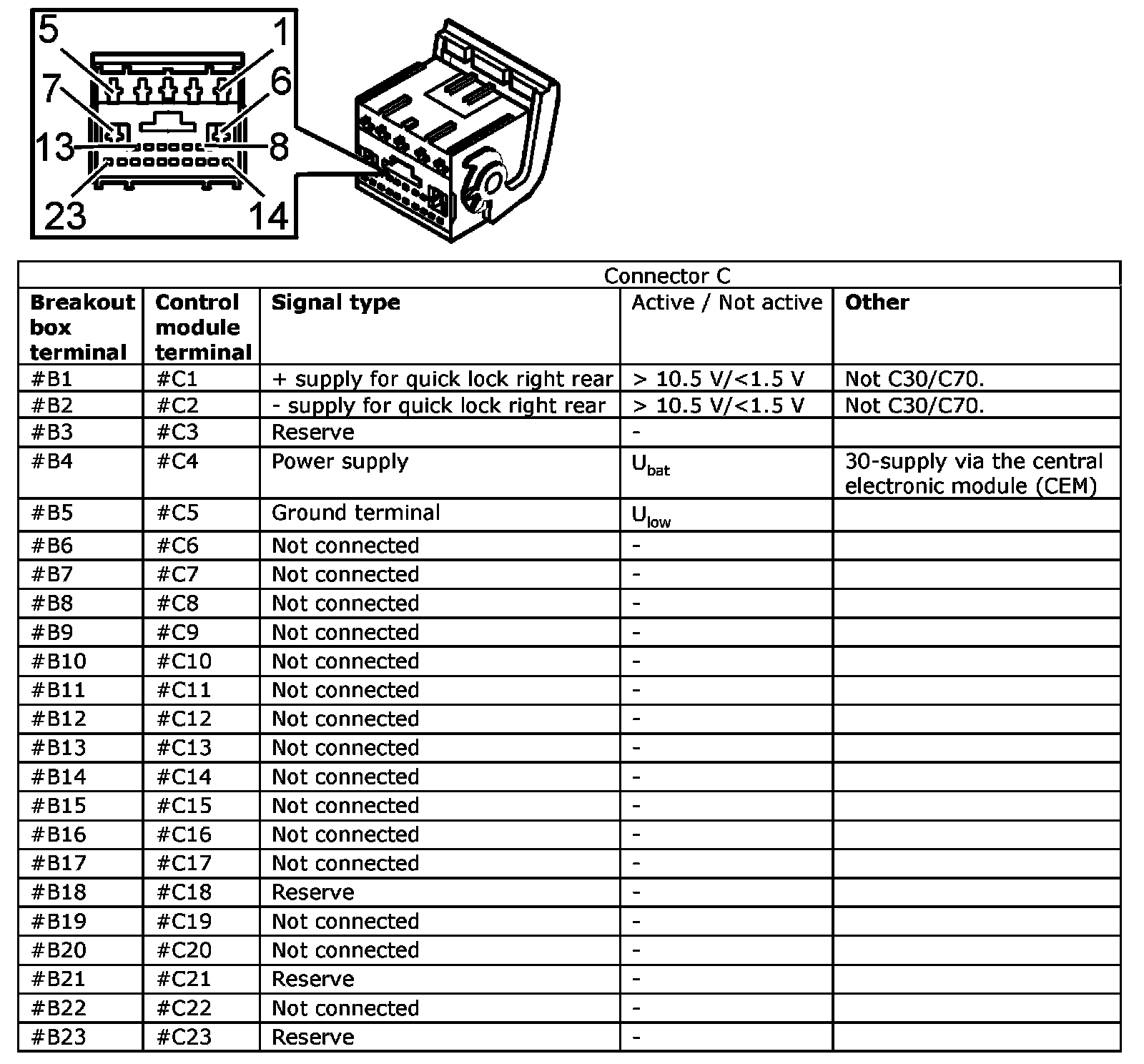

Connector C:

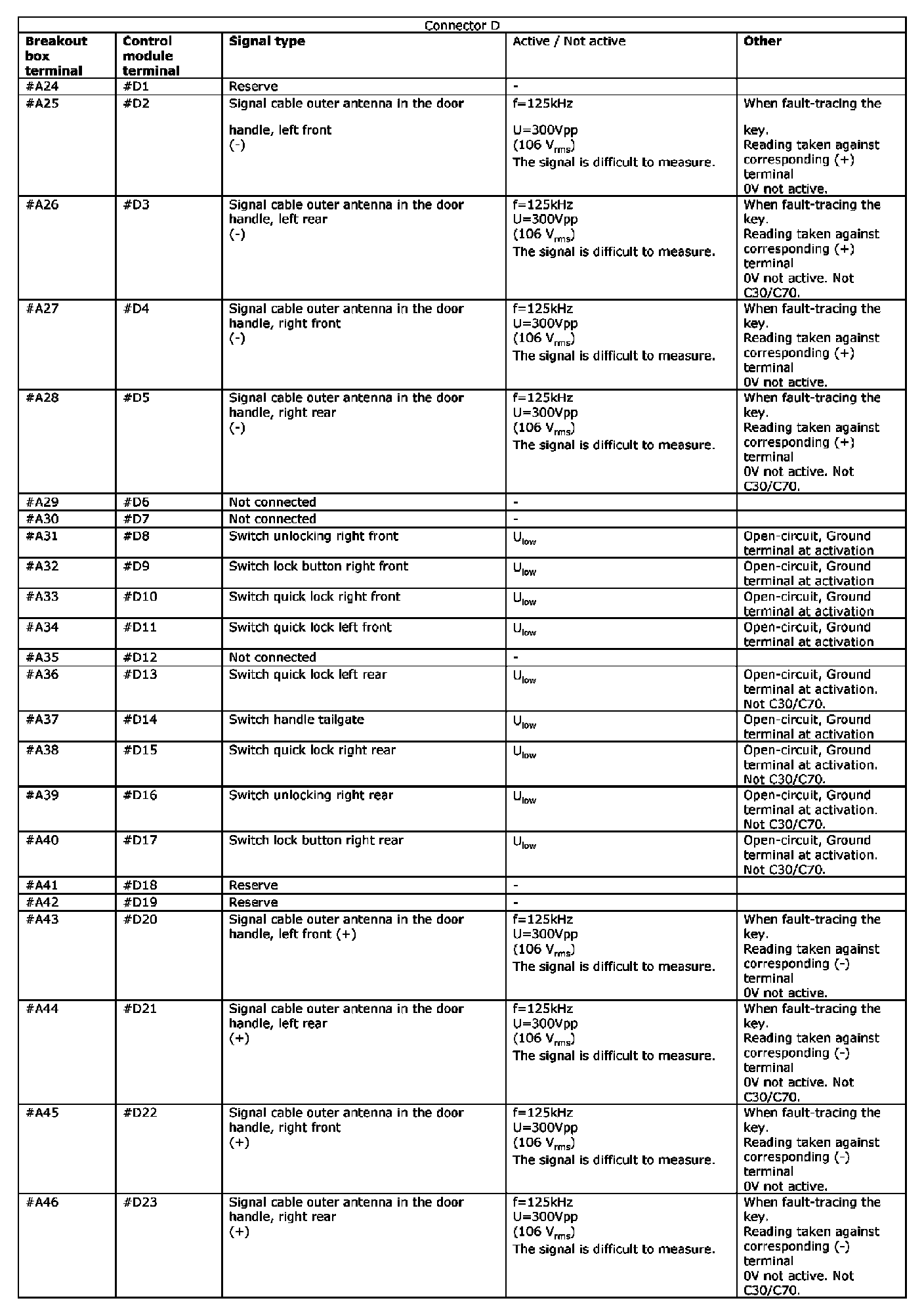

Connector D (Part 1):

Connector D (Part 2):

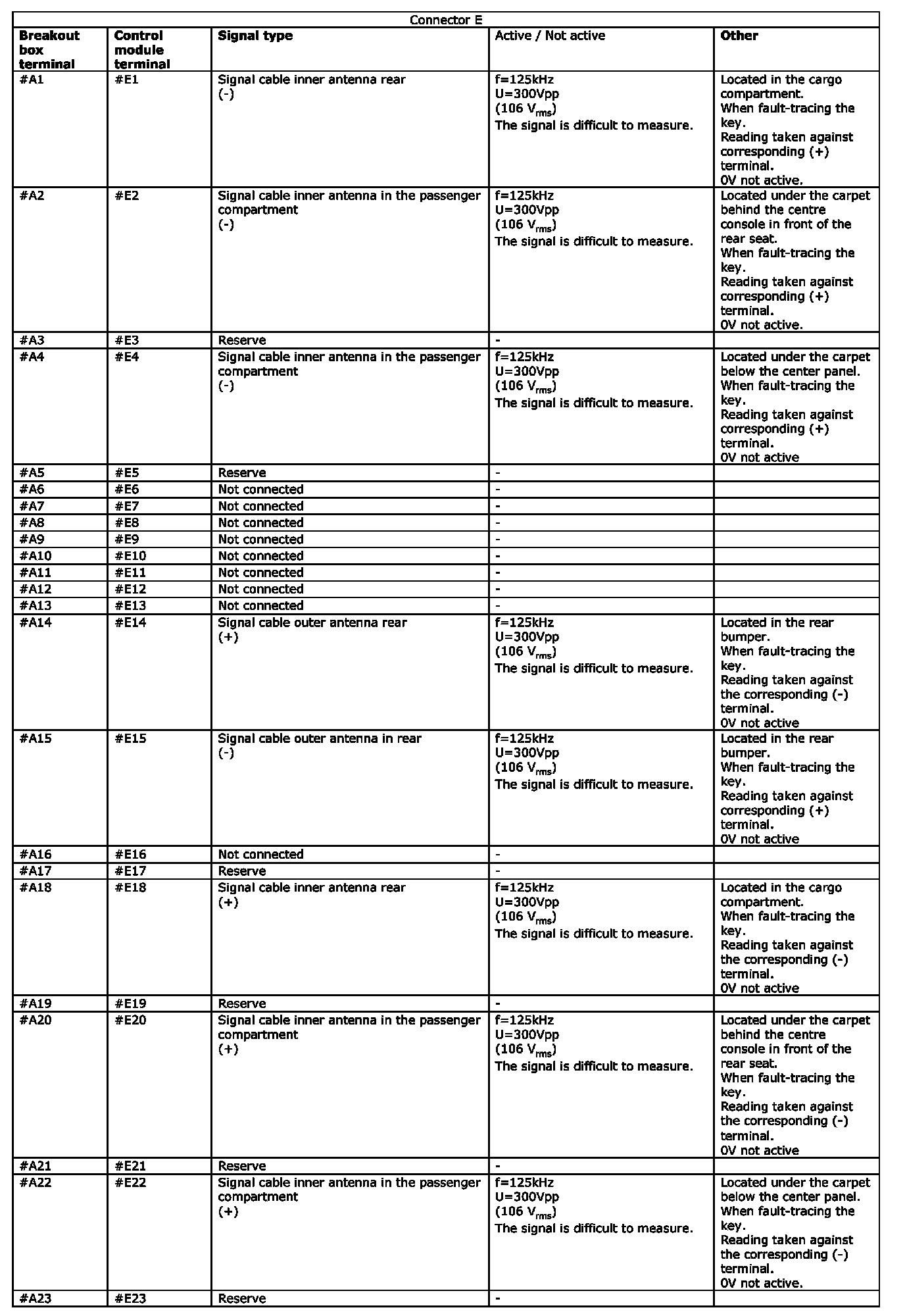

Connector E (Part 1):

Connector E (Part 2):
